The CNC machine bed is integrally cast iron, and the machine bed is inclined at 30°, which makes the operation of the machine tool and chip removal more convenient.

The X-axis and Z-axis adopt high-rigidity linear rails, and the optimized span between the rail and the rail low resistance, high rigidity, high precision and displacement speed up to 24m/min, improve work efficiency.

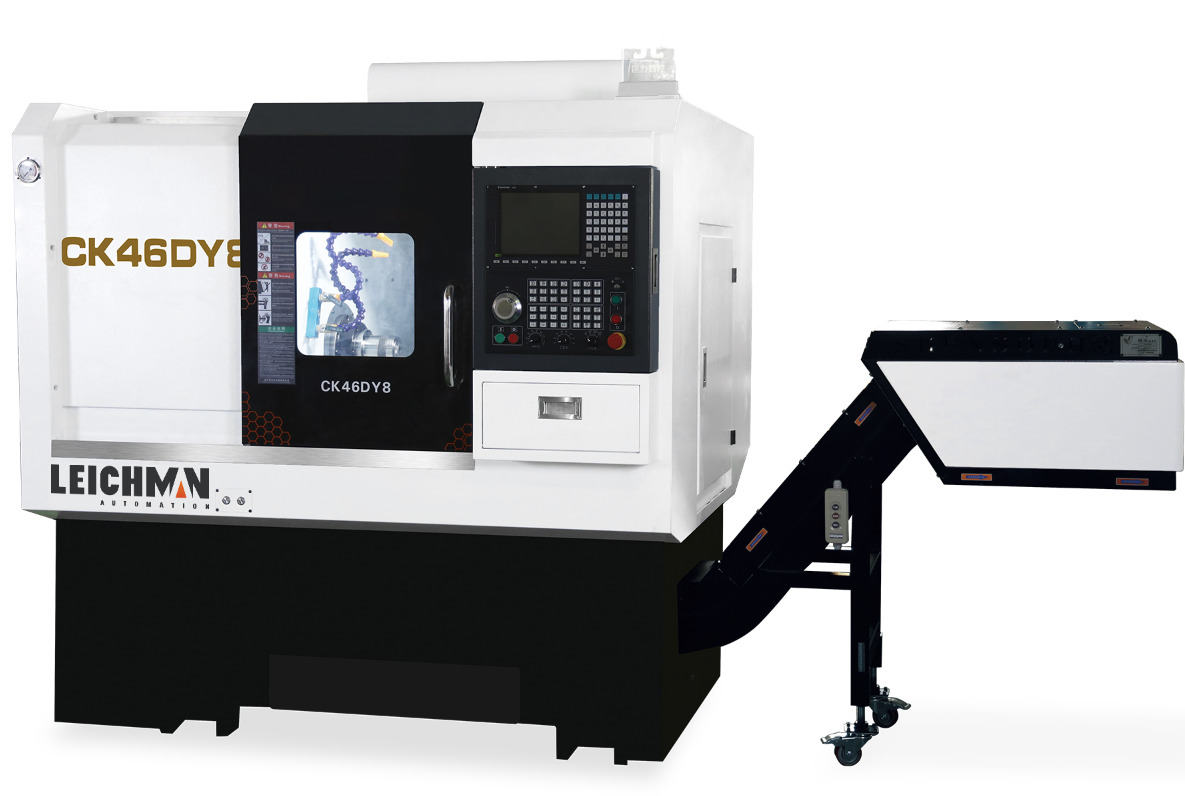

Item Unit CK46DY8

Capacity Max swing over bed mm 420

Max cutting diameter mm 300

Max cutting length mm 220

Travel X axis travel mm 800

Y axis travel mm 255

Z axis travel mm 360

Precision Spindle runout mm 0.004

Spindle index position accuracy ±0.002°

X/Y/Z axis reposition precision mm 0.002

Integral casting bed Bed tilt angle 30°

Y-axis series Turning and Milling Composite CNC lathe｜CNC Lathe Milling Machine

1. The transmission part of the machine tool adopts high-precision Japanese THK ball screw and high-speed linear rail from Japanese THK.

2. Leichman CNC Lathe Milling Machine can be equipped with a 4+4 integrated power head, Y-axis and C-axis functions; it can realize turning and milling combined processing, making complex product processing easier, reducing the trouble caused by secondary processing and improving product accuracy.

3. The main shaft adopts Taiwan high-precision main shaft which contains Swiss SKF precision bearings.
