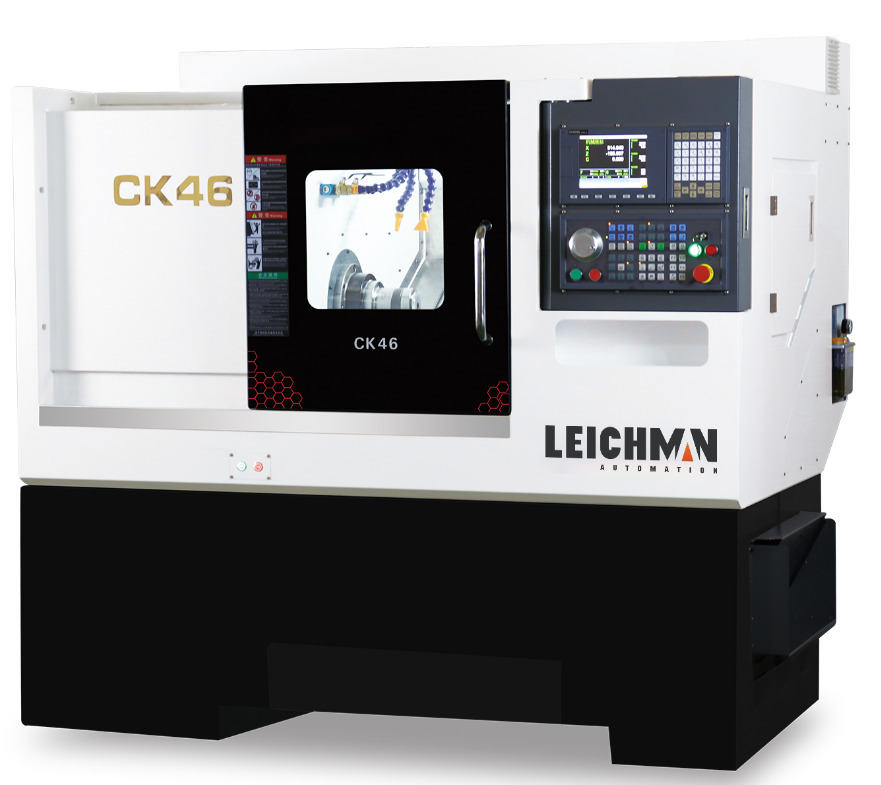

Gang Type CNC Lathe CK46

Product Description

The Leichman CNC machine tool control system adopts Taiwan SYNTEC system, and other CNC systems are optional.

The bed is inclined at 30°(CK46) / 45°(CK36), and the large carriage and the tool rest are placed obliquely, which makes the operation and chip removal of the machine tool very convenient.

Item Unit CK36 CK46

Capacity Max swing over bed mm 400 450

Max cutting diameter mm 350 360

Max machining dia.(disk) mm 135 135

Max machining dia.(shaft) mm 220 220

Travel X axis travel mm 750 950

Z axis travel mm 270 290

Precision Spindle runout mm 0.004 0.004

X/Z axis reposition precision mm 0.002 0.002

Body structure Slant bed degree 45 45
