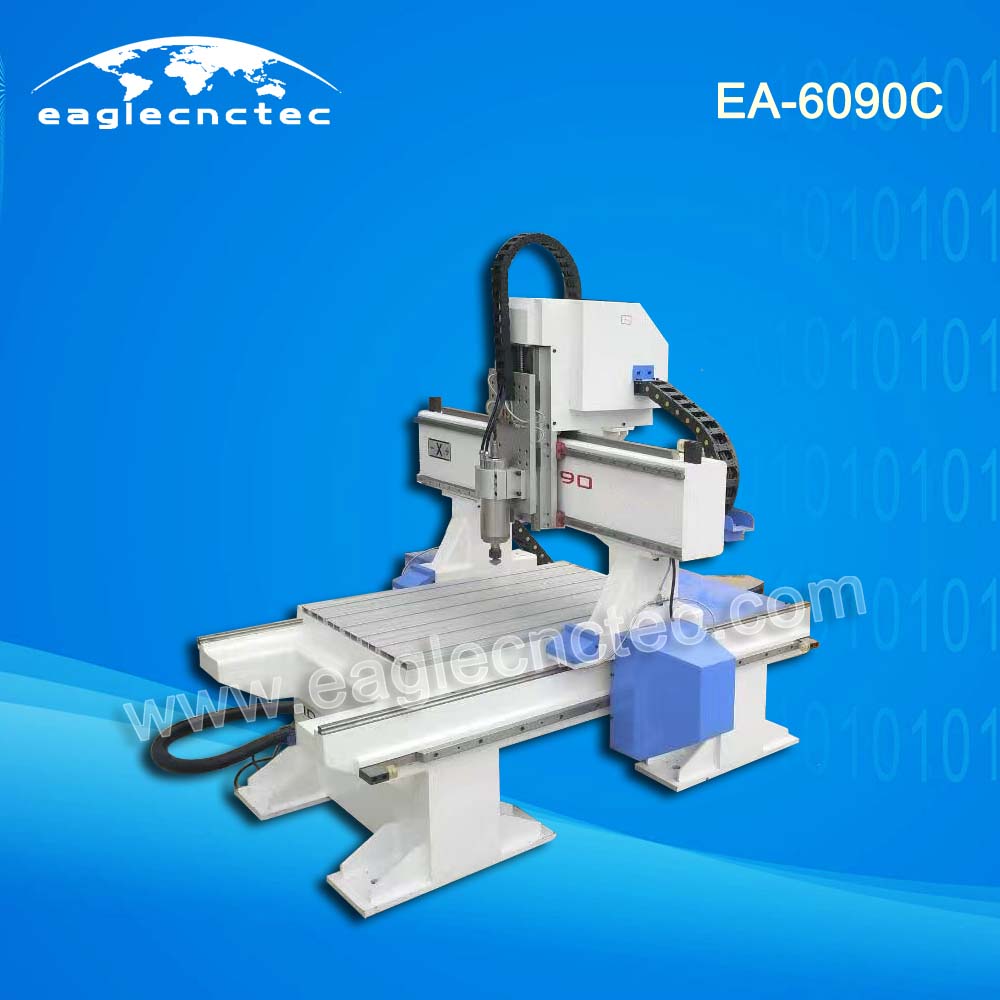

Hobby CNC Router 6090 Computerized Wood Carving Machine

From www.eaglecnctec.com

Jinan EagleTec CNC Machinery Co.,Ltd.，a professional China CNC Router Manufacturer.

Hobby cnc router EagleTec-6090C is adopted unique design on machine base which makes

the machine heavier loading than other regular 6090 cnc router. This cnc hobby router is a multi-purpose machine which is ideal for small work piece machining purpose includes: carving, cutting, milling, boring and slotting.

Material good for this hobby router machine includes all types wood, solid wood, hard wood, arcylic, ACM, Melamine, Copper, Phenolic, Brass, Aluminum, HDPE, PVC, Solid Surface, Foam, White expanded PVC.

Application

Signmaking, badge, arts and crafts, house decoration, exhibits, wood works, light metal works and more.

Features of Hobby CNC Router

1) Water cooling spindle can keep working for several hours without rest. On this point, it is superior to air cooled spindle.

2) All axes motion are supported on Taiwan Hiwin/PMI square linear guideways.

3) Well compatibility: CAD/CAM designing software e.g. Type 3/ArtCAM /UcanCAM etc.

4) Has the function of re-carving after break point and power failure.

5) Perfect oil-inject system makes maintenance much easier.

Technical Parameter

Model | EA-6090C

XYZ Working Stroke | 600x900x150mm

Spindle | 2.2kw water cooled, 0-18,000RPM

Numerical Controller | Richauto DSP

Motor | Stepper

Linear Guide | Origin PMI from Taiwan

Work Piece Holding | By clamp

Z Transmission | TBI rolling ball screw, high precision

XY Transmission | Rack and pinion

Working Power | 220V, Single Ph

Net Weight | 500KGS

Collet Size | ER20
