Auto Loading and Unloading CNC Wood Cutting Machine

From www.eaglecnctec.com

Jinan EagleTec CNC Machinery Co.,Ltd.，a professional China CNC Router Manufacturer.

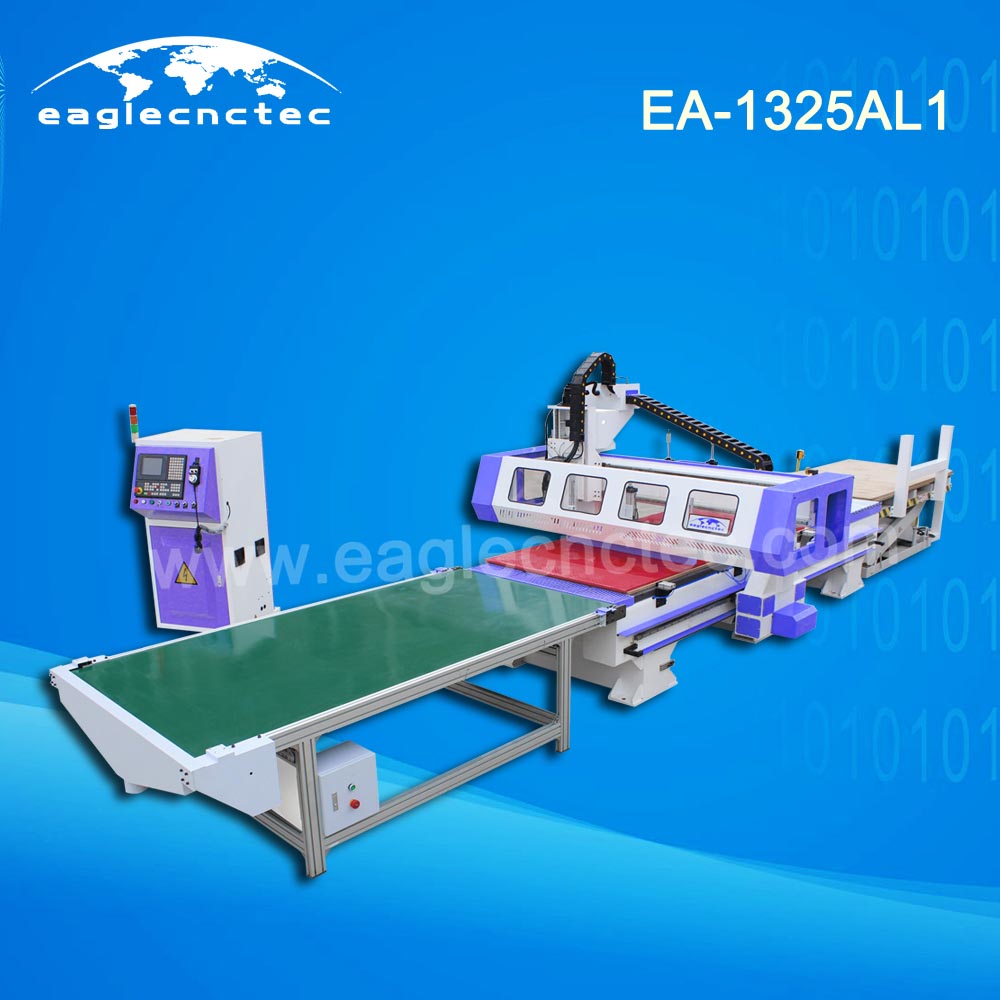

Simply speaking, auto loading and unloading CNC wood cutting machine EA-1325LA1 is a combination construction of CNC router with ATC and auto loading/unloading system. This combination together with the specialized nesting software, optimize the whole production process greatly from design, to machining and then finally to on-site installation. Compared with traditional way, it can save 50% labor source and finish all the jobs of one set cabinet body one stop. Also, the nesting software improves the utilization of material to the max extent. Based on the points above, CNC wood cutter with auto feeding has the highest production output and become a new trends in panel furniture industry.

Application

Specially for panel furniture includes office furniture, kitchen cabinet, cloths cabinet and so on.

Machining Capacity

Cutting, Drilling, Trenching, Sloting

Main Configuration of Auto Loading and Unloading CNC Wood Cutter for Panel Furniture Making

1) Origin Italy air cooling 9.0KW ATC spindle

2) Yaskawa Servo Pack

3) Disc Type Tool Magazine 8 positions

4) Heavy Duty Construction

5) Syntec Controller

6) It’s a high configuration machine; nesting cnc router with standard configuration is also available.

Features of auto loading /unloading system CNC Router

1) auto loading- suck the material sheet from the lift platform and drag it to working table of router machine

2) auto location- the sheet is located automatically after it reach the working table

3) auto machining- with auto tool changer, every production stage is machining automatically

4) auto unloading- machine push the finished boards to the conveyer belt platform for collection
