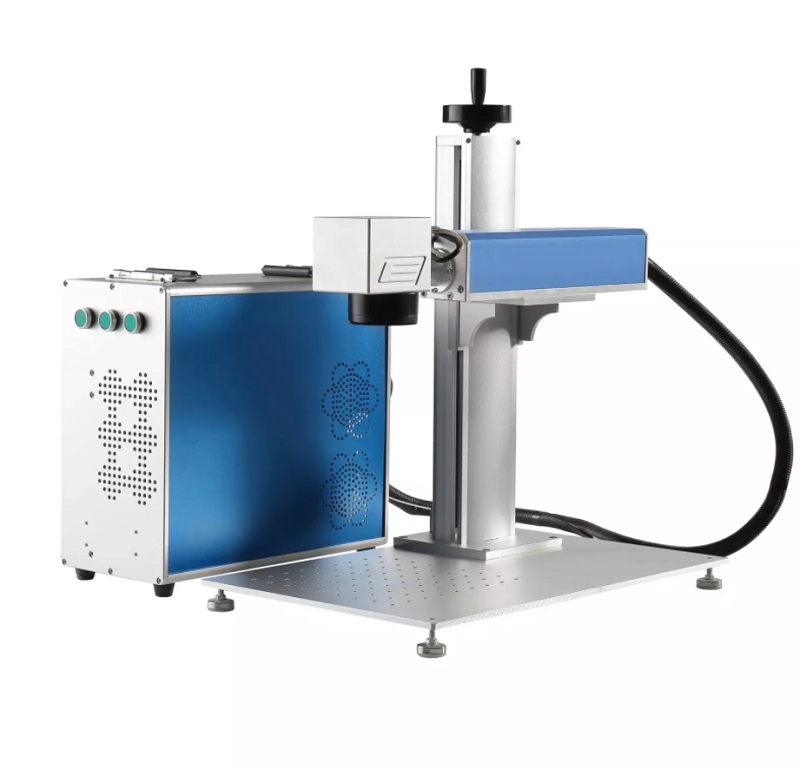

Fiber laser marking machine ST20FD-H

Fiber Laser Cutting Machine Features:

Hand-held design,it can marking on the immovable material ;

High speed with galvanometer;

Low power, consumption power is less than 500w;

Completely air cooling, low energy;

Fiber Laser Marking Machine Application:

Gold & silver jewellery, sanitary ware, food packing, tobacco products, medicine packing, medical apparatus and instruments, watches&glassware, auto accessories, electronic hardware

Applicable materials: gold & silver, stainless steel, camera, plastic, glass, stone, leather, cloth, bamboo and so on

Auto accessories marking, tobacco products marking, beer bottle marking, ring marking, electronic products marking

Technical Parameters

Model ST20FD-H

working area 100x100mm/200x200mm/300x300mm

Power Raycus 20W(Option: Max, IPG)

Marking Depth ≤1.2mm

Marking speed ≤12000mm/s

Min. Line width 0.01mm

Min.Character 0.05mm

Power supply 220V/50Hz
