Hy Rib Formwork Expanded Metal Sheet Lathe for Concrete Reinforcement and Plaster

High rib lath is an assembly free expanded metal sheet for permanent formwork to concrete construction.

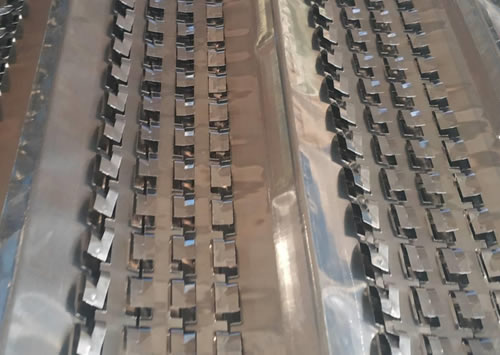

Structure

This ribbed lath has longitudinal ribs, small inverted ribs and small herringbone meshes.

The profile of Hy Rib open mesh in combination with its ribs provide an inherently stiff sheet along the length.

How to use

Hi rib lath is generally fixed between the out layers of reinforcement.

Ways of fixing include: stapled, nailed or screwed to the steel reinforcing substrate

The hi ribbed mesh formwork allows concrete slurry to flow through the keyjoint. This kind of form work rib is primarily used in construction joint applications, it is also used in wall, beam, column and soffit slab constructions.

Quality

High Rib Lath is manufactured from Hot dipped galvanized steel meeting stardard BSEN 10327, BS EN10142.

Application

Hi Rib Formwork is widely used as concrete permanent assembly-free formwork, in construction reinforcement of :

Tunnels bridges;

Sewage systems;

Subways;

Retaining walls;

High rise building projects;

Non-regular building;

Bending pattern;

other uses.
