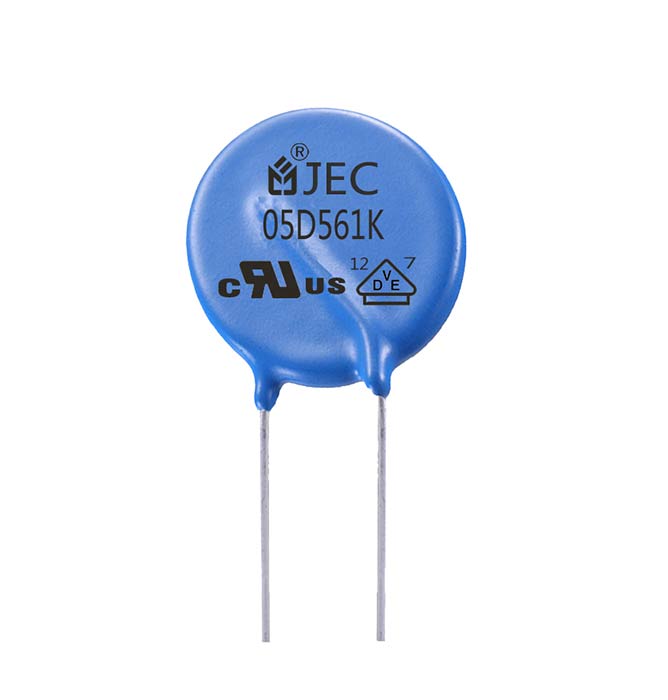

Varistor 05D561K cheap resistors varistor supplier varistor high quality varistor 05d561k manufacturer

varistor generator features:

1. Small size, absorb transient overvoltage, large surge current resistance. The voltage range is wide, range from several volts to thousands of volts for a single varistor.

2. Low limiting voltage (residual voltage), low leakage current, fast response speed (ns level), Front and back symmetrical volt-ampere characteristics, the flow rate of a single varistor can reach 70KA or higher.

Varistor Electrical characteristics:

Technical Data

Model Size Ф5mm ~ Ф20mm

Operating/Storage Temperature -40℃ ~ +85℃(+125℃ VDE)/-40℃ ~ +125℃

Withstanding Surge Current 100~6500A

Approved Monogram UL ,VDE ,CSA ,CQC

Series Maximun Allowable Voltage   Varistor Voltage Maximun Clamping Voltage

AC rms(V) DC(V) Min. Vb(Vdc) Max. Vc(V) lp(A)

JNR 7~1000 9~1465 9.6~1620 12~1800 14,4~1980 25~2970 1~100

If You Are Finding Lighting Capacitor and High Density Capacitor and China Capacitor In China, We Will Be Your Best Choose! We Have Our Own Factory, So We Can Give You A Cheap Price!
