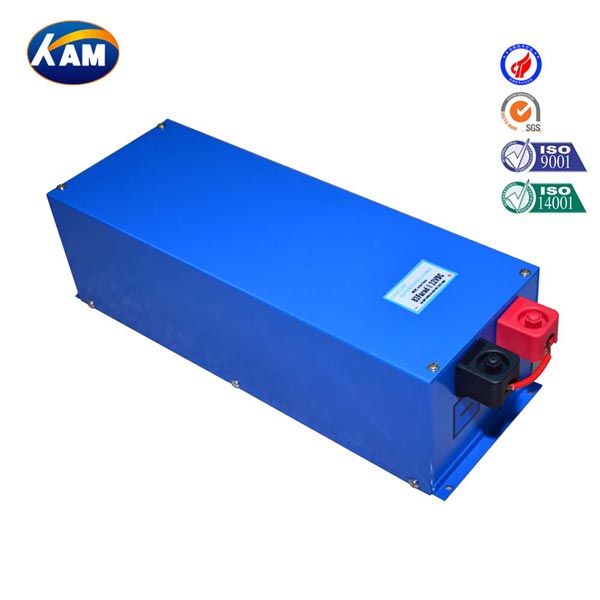

Performance of MK Module Series Ultracapacitor

Kamcap supercapacitor energy storage module with supercapacitor protection circuit, good stability and high conversion efficiency. The voltage and capacity of the super capacitor are improved by series and parallel connection, and it has a good application prospect in the automotive field and energy storage field.

Increase the use voltage of the product by connecting the supercap 24v and supercap 48v cells in series to form a module product through advanced processes and components.

Typical Application of MK Module Series Super Capacitor

The MK module series supercaps can be widely udes in vehicle start, power distribution terminal (including DTU, FTU, TTU), industrial backup power supply, fault indicator, medical equipment, etc.

Following are the detailed specification of this type of supercaps. If you need to know the ultracapacitor price, please make enquires via [email protected].

Specification of MK Module Series Supercapacitor

Power terminal voltage Rated voltage Surge voltage Capacity range Operating temperature range Product life

VR

3.3~5V 5.4V 5.4V 10~200F -40 ~ +65℃ Normal temperature cycle life: 25℃,1 million cycles between VR and 1/2VR,Capacity attenuation ≤ 30%, ESR ≤ 3 times.

6~7.5V 8V 8.1V 6~133F -40 ~ +70℃ High temperature endurance life: 70℃,maintainVR, 1000 hours.

9V 10V 10.8V 0.5~117F -40 ~ +85℃ Capacity attenuation ≤ 30%, ESR ≤ 3 times.

12V 12.5V 12.5 4~80F

13.5V 13.5V 4~80F

15V 15V 3~500F

16V 16.2 3~500F

24V 27V 27 2~300F

30V 32 1~250F

48V 48V 48.6 1~165F

50V 54 1~150F

60V 64 1~125F

100V 100V 105 1~75F

120V 125V 130 1~62F

If you want to know more kinds of 12v ultracapacitor module, please visit our website.

As an ultracap ltd, we supply high-quality ultracapacitors, including coin type supercapacitor, winding type supercapacitor, combined type supercap capacitor, module supercaps, high temperature supercap and hybrid capacitor. Kamcap is devoted to the research and development of ultracap and strictly control the ultracapacitor production. Kamcap super capacitor, your best choice for supercapacitor!

As an ultracapacitor manufacturer, we will do our best to meet all the needs of customers.
