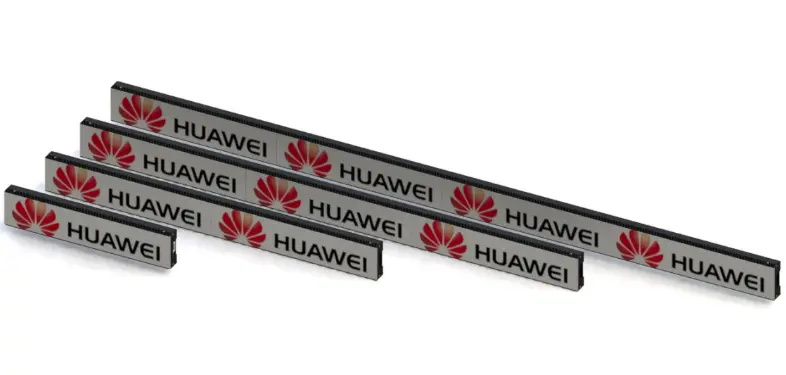

Platinum LED shelf display

Parameter Value

Model GS1.2-300A GS1.2-600A GS1.2-900A GS1.2-1200A

Pixel Pitch X2.5mm/Y1.25mm

Pixel configuration 1R1G1B

LED type Black SMD 3-in-1

Brightness 300-600 nits

Viewing angle H: 160°; V:160°

Pixels per panel 120*48 Dots 240*48 Dots 360*48 Dots 480*48 Dots

Color temperature 3000K to 10000K can be adjust

Driving Method Constant Current Drive）

Processing depth 10-16 bits

Gray scale 65536 levels per color

Color trillion

Brightness control Manual/Automatic

Maximum contrast 3000:01:00

Video frame rate 50/60 Hz

Rate refresh 1920-3840 Hz

Input voltage 12V or 24VDC (9~36VDC)

Input power frequency 50~60 Hz

Input power 9.6W 18W 27W 36W

Input power 3W 6W 9W 12W

Life Time ≥50,000 Hours

Maintenance mode forward maintenance

Recommended viewing distance 1 M

Weight 0.5 kg 0.9kg 1.2kg 1.5kg

Cabinet size W300×H62.5×D24.5mm W600×H62.5×D24.5mm W900×H62.5×D24.5mm W1200×H62.5×D24.5mm

Material Aluminum extrusion

Ingress protection IP40

Operating Temperature/Humidity 0℃~+45℃/10~90%RH

Storage Temperature/Humidity -10℃~+55℃/10~90%RH

Rigging form Fixed with support bracket)

Input signal SDI,RF,S-VIDEO,RGBHV,YUV,YC & COMPOSITION,etc

Data interconnection L≤100m；single mode fiber ( L≤20km )

Note: The value is reference，specification subjected to change without prior notice.
