Item No.: 203034

The world's lightest & high power secondary current injection test set

● 6x35A@425VA max & 6x310V@105VA max analog outputs.

● 10kg weight, easy carry on flight journey.

● Low-level signals output, energy meter testing, transducer calibration and IEC61850 testing capability for optional.

Description

Basic Functions

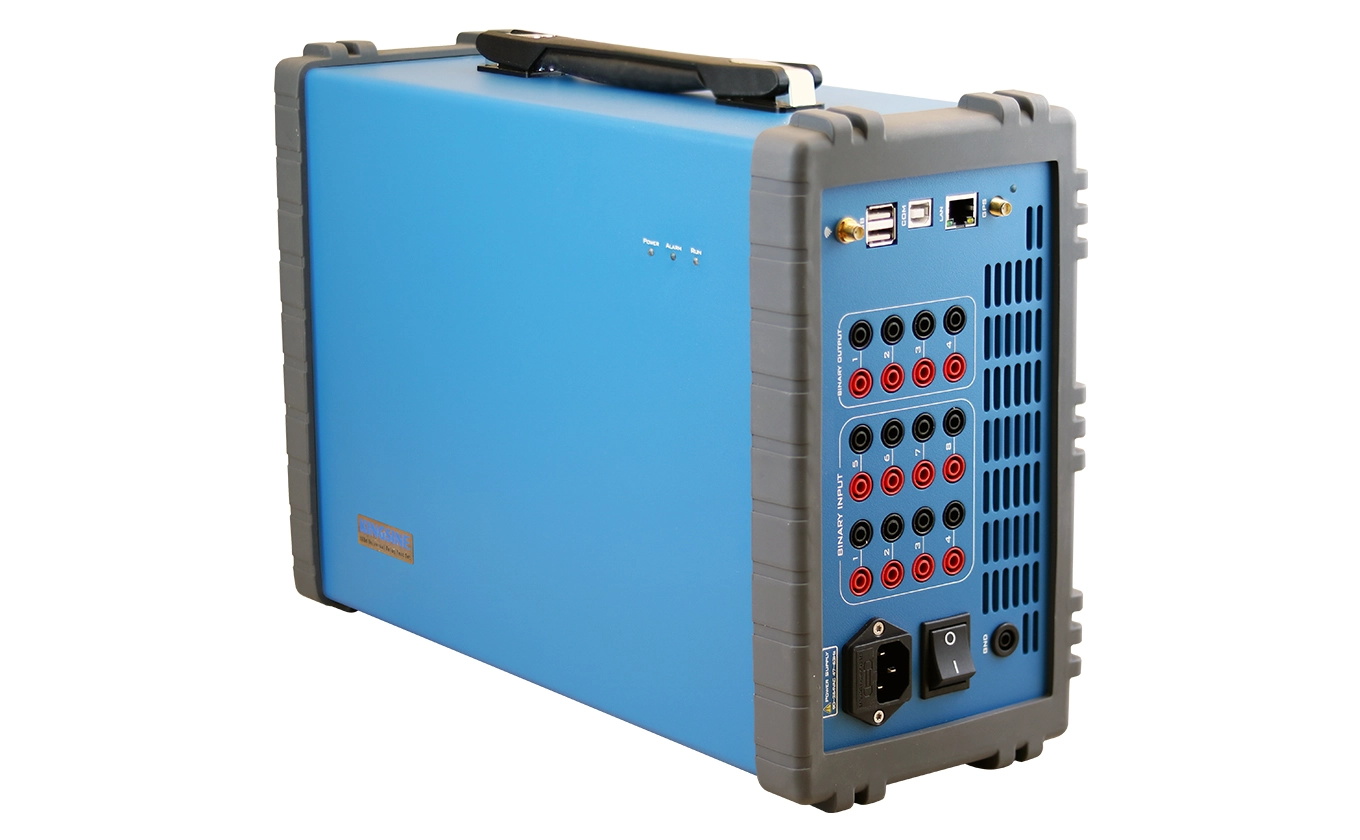

The KF85P is a multipurpose, light-weight, field portable test set, it capable of testing a wide variety of electro-mechanical, solid state and microprocessor based protective relays, motor overload relays, IEC61850 testing, and similar protective devices.

12 Analog Channels outputs, 6x35A & 6x310V, Each output channels are independent and simultaneous control of magnitude, Phase angle and frequency values, able to inject DC, AC sine wave and up to 60x harmonics.

Lightweight,
