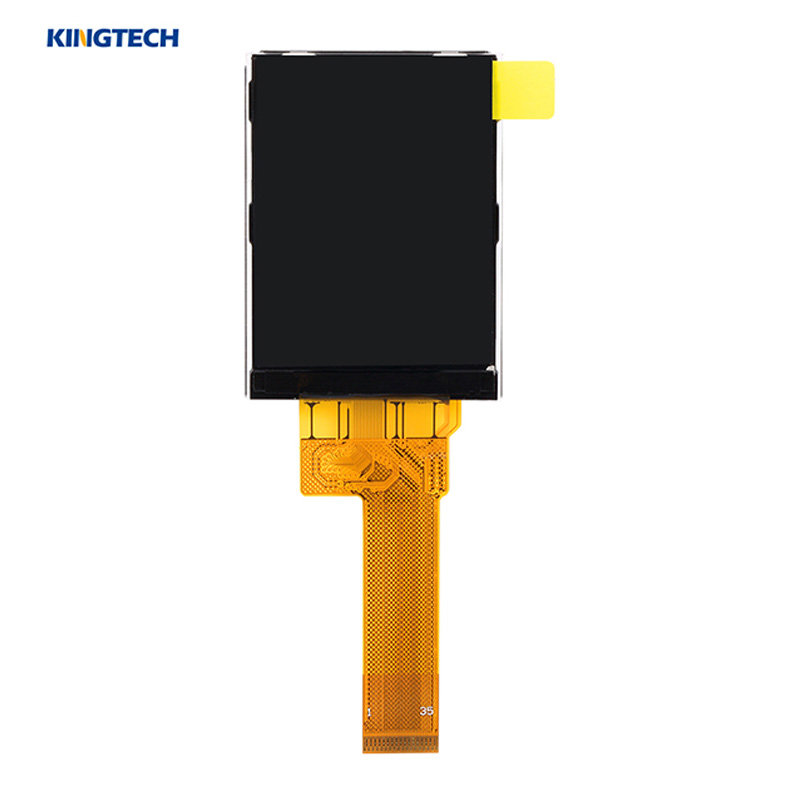

Kingtech tft 2.0 240x320 (QVGA) IPS/free/all/wide viewing angle TFT LCD display is very popular in the market.

This one is portrait type, and it's mainly used for handheld devices, medical, and E-bike. Plus the 2.0inch can reach 1000nits, so it can be sunlight readable. The 2.0 tft inch IPS display can custom TFT resistive touchscreen and capacitive touch.

Kingtech Display promises that we will provide the customers with qualified standard displays and satisfying one-stop services. Any requests will be welcomed.

Features of 1000nits High Brightness 2.0 Inch 240x320 IPS TFT LCD Display

All/Free/Wide viewing angle

240x320 resolution / QVGA resolution

IPS type

16bit RGB interface

High brightness LCD display/sunlight readable/1000nits

Can custom resistive touch and capacitive touch

Small/tiny display

Specification of 1000nits High Brightness 2.0 Inch 240x320 IPS TFT LCD Display

Item 2-inch LCD screen

Model No PV02004LZR35G

Resolution 240*320

Outline Dimension 35.9(W)×51.66(H)×2.75(T)

Active Area(mm) 30.60(W)×40.80(H)

Brightness 1000 cd/m2

Viewing Angle Free

Interface 4SPI+16-bit RGB interface

Warranty 12 months

Driving IC ST7789V

Display Mode TFT

PIN 35

Operating Temperature -20~70

Storage Temperature -30~80

Application of 1000nits High Brightness 2.0 Inch 240x320 IPS TFT LCD Display

The 2.0inch IPS display can be used for medical devices, handheld equipment, industrial control, smart Home, POS machines,s and telecom products.

The 2.0inch IPS 1000nits also can be used in sunlight-readable such as advertising machines, automotive devices, and E-bike.

As one of the most professional lcd display module manufacturers, we provide lcd display panels, 240x320 tft, high brightness tft display, high brightness tft, 2.0 tft lcd, tft 240x320, high brightness lcd screen, lcd display screen and etc. Want to know more? Please contact us.
