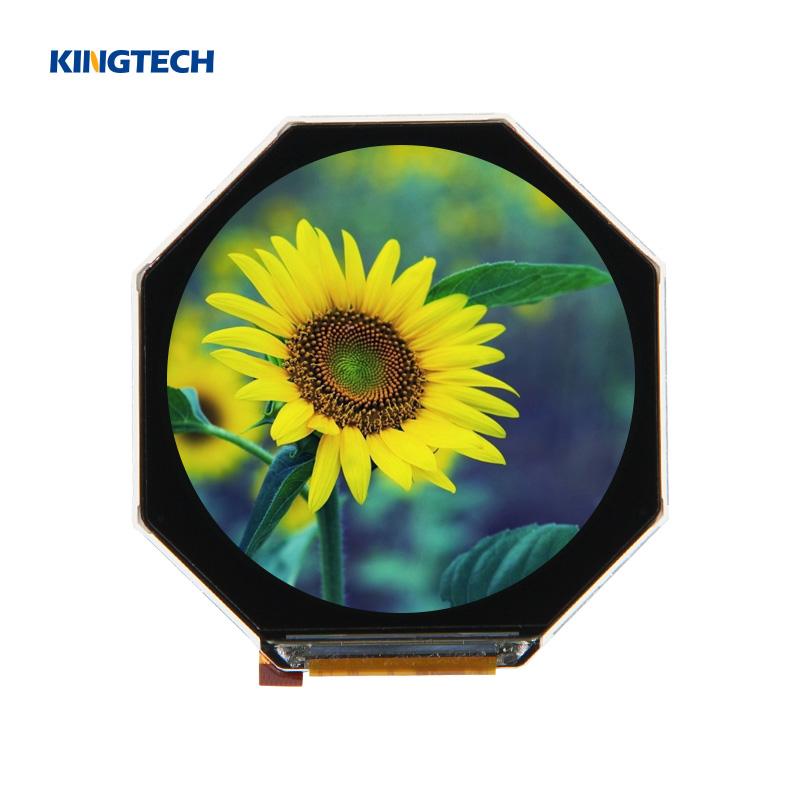

Kingtech 3.34inch 320x320 LCD display is our most leading product. The 3.34inch is 600nits, it can be used for outdoor devices such as the advertising machine and automotive equipment.

The 3.34inch round TN display also has existing HDMI Board. The HDMI board can be connected to a raspberry pi.

Kingtech Diaplay has achieved great progresses in the field of LCD production. We promoise that we will provide the customers with qualified standard LCD dispaly and satisfying one-stop services. Any requests will be welcomed.

Features of 600nits 3.34 Inch 320x320 MIPI Interface Round TFT Display

Round / Circle / Circular

320x320 resolution

High brightness/sunlight readable/600nits

HDMI Board

Specification of 600nits 3.34 Inch 320x320 MIPI Interface Round TFT Display

Item  Kingtech 3.34  inch   320*320  MIPI display

Model No PV033400AR17A

Resolution  320(RGB) X 320

Outline Dimension  66.20(H)×69.30(V)×2.66(T)

Active Area(mm) Diameter 60mm

Interface  MIPI (Command Mode)

Brightness 600nits

Viewing Angle 12 o'clock

Driving IC  ST7796SI

Display Mode  TM with Normally White

Operating   Temperature  -20 to +70℃

Storage Temperature  -30 to +80℃

Board HDMI board

Application of 600nits 3.34 Inch 320x320 MIPI Interface Round TFT Display

The 3.34 inch 320x320 round display has a wide application field. It can be used for the thermostat, automotive device, handheld device, industrial control, and smart home equipment.

As a tft lcd manufacturer, we will do our best to meet all the needs of customers.
