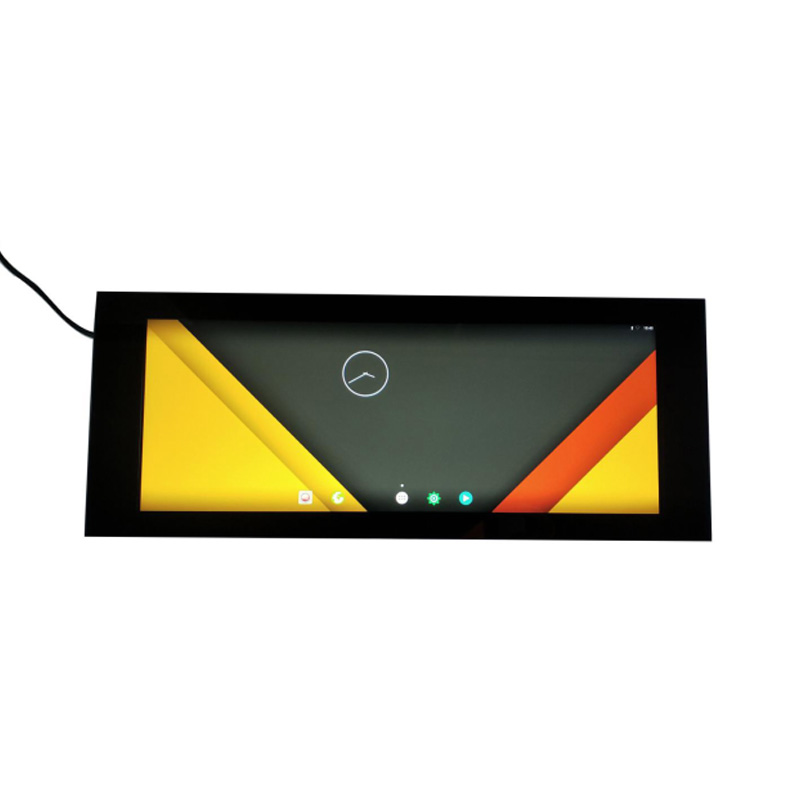

Kingtech 12.3inch 1920x720 LCD screen has an existing Android & Linux Board. The 12.3inch is IPS /full/all/free/wide TFT LCD module.

This 12.3 inch lcd is also wide operating temperature, it's -30~+85C. The 12.3 inch screen has capacitive touch, but we can custom LCD screens according to the customer requirements. The 12.3 inch display is 850nits and can saw under the sun.

Features of 12.3 Inch Bar Type 1920x720 Display With The Main Board

1920x720 resolution /High definition resolution

IPS/Free/All/Wide/Full type

High brightness/Sunlight readable/850nits

Landscape / Horizontal display

Support Bluetooth

Support 2G/3G/4G

USB x 2 / HDMI 1.4 output / AUDIO OUT

Can be used on Raspberry Pi

Operating temperature -30 to +85℃

Support capacitive touchscreen

Support Android & Linux LCD module

Specification of 12.3 Inch Bar Type 1920x720 LCD Display With The Main Board

Kingtech Diaplay will provide the customers with qualified standard dispalys and satisfying one-stop services. Any requirements of specifications will be welcomed.

Item 12.3inch 1920x720 with touch complete solution

Model No. PV135-PV012304LXD50F

Resolution 1920×720

Display Color 16.7M

Outline Dimension 348mm×140mm×47.5mm

Active Area(mm) 292 mm×109.5 mm

Viewing Angle All

Display Mode Normally Black

Operating Temperature -30 to +85℃

Storage Temperature -30 to +85℃

Brightness 850nits

Backlight Life-Time >30000h

Touch Screen Capacitive touch panel

Touch Times 1 million times at least

Operating System Android/Linux

CPU Allwinner A40i Quad Core [email protected]

GPU Mali 400 MP2

DDR/RAM 1GB

EMMC/FLASH 8GB

Bluetooth Support

2G/3G/4G Extensible 3G data/4G data function, support WCDMA, EVDO, CDMA, GSM, 2G/3G full frequency band support 850/900/1800/1900MHz/2100MHz

(Do not connect other peripherals to USB1 when using 4G module)

Interface USB x 2

HDMI 1.4 output

AUDIO OUT

TF Interface Support 128G max

Wired network RJ45

WIFI Interface IEEE 802.11 b/g/n WLAN

Application of 12.3 Inch Bar Type 1920x720 LCD Display With The Main Board

The 12.3inch 1920x720 IPS LCD with Android & Linux Board TFT LCD display can be used for medical devices, handheld equipment, industrial control, smart home, monitoring, oscilloscope, logistics device, automotive equipment, and E-Bike.

For more information about lcd display panel and buy lcd screen, please feel free to contact us!
