Mounting Pot Magnets & Cup Magnets Wholesale

As one of the most professional pot magnets wholesale manufacturers, we offer an extensive range of strong mounting pot magnets, also called cup magnets, from small pot magnets lifting 400g up to large pot magnets lifting up to 1000kg. Our mounting magnets powerful exist in a wide range of diameters and heights. We actually offer far more sizes and pull forces across the range than shown on this site – if you cannot see a pot magnet of the right size or performance, please contact us for our complete brochure range.

Pot magnet, cup magnets, mounting magnets, magnetic holders, stainless steel magnetic hooks, round-based magnets, mountable magnets, shallow pot magnets, rubber coated magnets – these are all examples of super-strong adhesive force pot magnets that pot magnetic products suppliers can supply.

Pot Magnets Without Bore

Coating one surface of the magnet with an iron sheet means that the magnetism of the coated surface is shielded and the magnetic lines are guided to the other surface so that the magnetic force of the other surfaces is strengthened. For some magnet applications, only the magnetic force of one side is needed, while the other side of the magnetic force could cause interference; in some applications, only one side of the magnet can be used, and the other side not used, which is not essential. This can lower the cost and savings of the amount of magnetic material used.

As one of the most professional wholesale pot magnet supplier from China, our pot Magnets without bore are strong flat circle magnets. They are flat, round magnets and only one side have magnetism; they are widely used in moon cake boxes, mobile phone boxes, suitcases, leather, etc.

Leyuan has different types of flat pot magnets for sale, such as powerful flat magnets, long flat magnets, and strong round flat magnets. If you want to buy flat magnets, please contact Leyuan or leave a message through our website.

Pot Magnets With Bore

These neodymium pot magnets with countersunk holes have only one surface that has strong magnetism; the other surface of the neodymium pot magnets just has very weak magnetism.

Leyuan countersunk neodymium magnets have excellent holding forces thanks to the use of anisotropic neodymium (NdFeB) magnets. The maximum working temperature of these types is up to 80°C, and the steel body is galvanized. These types are used in applications where high holding forces and small dimensions are required.

Application: magnet source round base magnets can be inserted into different instruments, machines, and tools. These mountable magnets can be used effectively as auxiliary instruments during transport, clamping, mounting, lifting, welding, separation, etc. The best holding force is reached at full contact of the magnetic face with the ground ferromagnetic surface. Force is vertical to the base (air gap = 0 mm). Small cracks on the magnet or steel pot do not have any influence as to the functionality, lifetime, and holding force of the pot magnet.

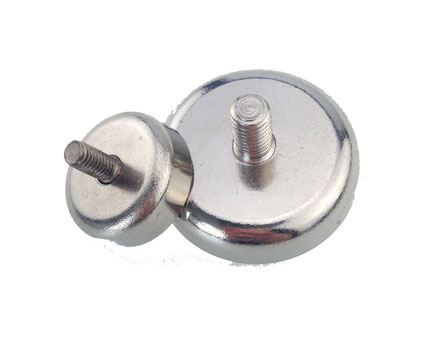

Pot Magnets Threaded

These pot magnets with threaded stud have a metric internal thread and can be fastened with objects with an external thread. We can also provide these magnets with a rubber coating.

The magnets are embedded in a steel pot. The steel pot increases the adhesive force of the magnet on direct contact with a thick iron surface. If there is no direct contact with the counterpart, or if the steel plate is thin, painted, or rough, you can strain it much less.

Threaded neodymium cup magnets are made of a powerful Neodymium magnet sunken into a steel shell meaning that the north pole is located at the center of the magnetic face and the south pole is located around the outer edge of it. The steel pot increases the adhesive force of the threaded neodymium magnets, giving them an incredible hold for their size.
