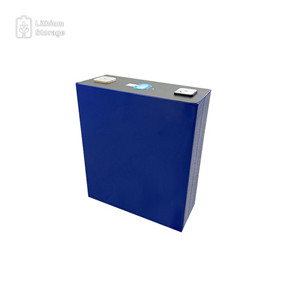

LFP71173204E-280Ah Lithium Ion Battery 280ah Lithium Ion Battery Prismatic Lithium Iron Phosphate Battery

280Ah Lithium Ion Battery is prismatic lithium iron phosphate battery, Weight: 5.34±0.15kg, Energy density: 165Wh/kg 350Wh/L, Cycle life: ≥6000 times

280Ah Lithium Ion Battery Description

280Ah Lithium Ion Battery is prismatic lithium iron phosphate battery.Three types of terminals are available to meet multiple installment demands, including welding terminal, screw terminal and nut terminal. The cycle life of LFP71173204E-280Ah can reach 6000times, and long cycle life makes it to be widely applied for energy storage system (ESS) projects.

LITHIUM STORAGE can offer different terminal solution for cells with welding terminals, including screw terminals and Nut terminals. These solutions have passed the multiple inspection testing items such as drawing force, shear force and torque testing etc. and have been applied in the various electric vehicle and energy storage projects in the different countries.

Product Parameter Table

No. Item Specification Note

1 Rated Capacity 280Ah @1C

2 Nominal Voltage 3.2V

3 Actual Voltage Range 2.5-3.65V

4 Rated Discharge Current ≤280A Typical Value=140A

5 Peak Discharge Current ≤560A @60s

6 Rated Charge Current ≤280A Typical Value=140A

7 Peak Charge Current ≤560A @60s

8 Operating Temperature Charge: 0℃~55℃

Discharge: -30℃~55℃

9 Storage Temperature ﹣30℃~60℃

10 Cell Dimensions Thickness: mm

Length:173.93±0.3mm

Height: 204.59±0.5mm

11 Cathode Material LFP

12 Weight 5.34±0.15kg

13 Energy density 165Wh/kg 350Wh/L

14 Cycle life ≥6000 times @0.5C/0.5C 100%DOD

15 Terminal Welding/Screw terminal-Nut

LITHIUM STORAGE is a lithium technology provider. LITHIUM STORAGE focuses on to deliver lithium ion battery, lithium ion battery module and lithium based battery system with BMS and control units for both electric mobility and energy storage system application, including standard products and customized products.
