M-100 Globe & Safety Valve Grinding Machine

Portable Valve Grinding and Lapping Machine For Globe/Safty Valve

Portable Valve Grinding and Lapping Machine

Model M-100 portable valve grinder is developped for the maintenance of valves as the new generation product. The product can reduce labor intensity, improve labor efficiency and lower maintenance costs.It is widely used in the industries such power generation, petroleum, chemical and metallurgy .It has the following characteristics:

Light, compact, and easy to carry

Split-type assembly makes installation easy and fast

Easy to be used

High efficiency,good grinding quality

Maintenance in the site without valve disassembles and assembles

1. M-100 Portable  Valve Grinding Machine Overview

Model M-100 portable valve grinder is developped for the maintenance of valves as the new generation product. The product can reduce labor intensity, improve labor efficiency and lower maintenance costs.It is widely used in the industries such power generation, petroleum, chemical and metallurgy .It has the following characteristics:

Light, compact, and easy to carry

Split-type assembly makes installation easy and fast

Easy to be used

High efficiency,good grinding quality

Maintenance in the site without valve disassembles and assembles

2. M-100 Portable  Valve Grinding Machine Technical Parameter

Application:Cone globe valve seat,Flat Globe valve seat.

Grinding scope:

Cone  globe valve seat: Φ20~65mm,angle 60°、75°、90°

Flat globe-valve seat: Φ20mm-225mm

Motor power: 750W

Rated Voltages: 220V

Allowed adjustable length: L≤250mm

Operating weight: 3kg

3.M-100 Portable  Valve Grinding Machine  Part list and installation pictures

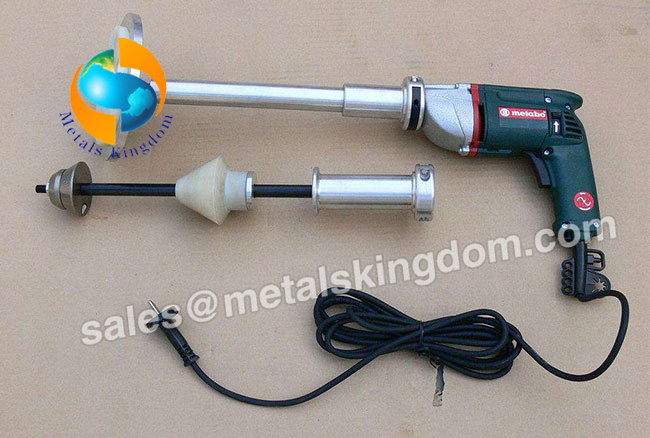

The said grinder is composed of motors,hand-lift set,driving shafts,fixed set, lapping head, papei-pressure, gasket, nut and so on.

The following pictures separately expressed installation for various valves.
