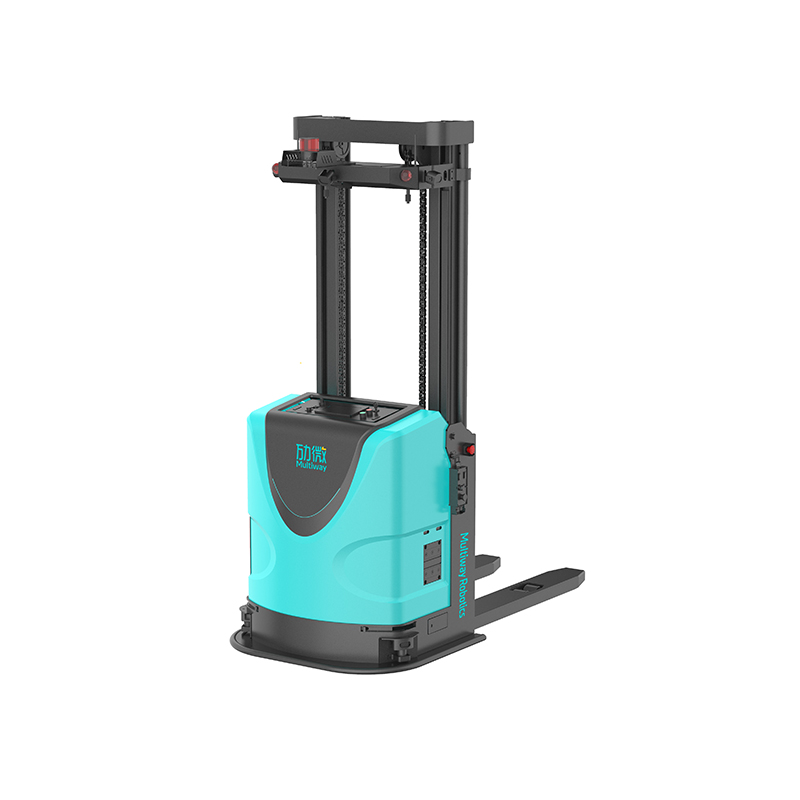

Pallet Stacker MW-L20, electric stacker machine using laser navigation and positioning, the payload reaches reach 2 tons, and the lifting height can reach 4m. The larger battery capacity design extends the working time while reducing the number of charging times, which effectively improves the working time and working efficiency of the unmanned automated stacker forklift.

Multiway is committed to providing high-quality warehouse robot for customers, being one of the best warehouse robotics companies.

Standard Models MW-L20

Pallet Stacker

Navigation Laser+reflector navigation ●

LiDAR SLAM navigation ○

Hybrid navigation(LiDAR/Laser reflector+QR code/Magnetic nail/ceiling) ○

Communication Wireless Wi-Fi ●

Optical communication ○

5G ○

Specifications Payload（kg） 2000

Turning Radius（mm） 1660

Lost load height （mm） 3410

Max lifting height（mm） 4500

Max height payload（kg） 700

Min fork height（mm） 86

Dimensions l/e/s（mm） 1150x180x55

Outer fork width（mm） 560

Aisle width【Pallet dimensions 1m(along the fork)x1.2m】（mm） 2750

Pallet posture recognition width【Pallet 1m(along the fork)x1.2m】（mm） 3100

Weight（kg） 1500

Dimensions LxWxH（mm） 2030x950x2300

Motion capability Motion Reach, back, turning

Speed(Unloaded/Max loaded)（m/s） 1.38

Accuracy（Bearing wheel center）（mm） ±5

Endangle accuracy（°） ±1

Ditch crossing capability（mm） ≤30

Obstacle crossing capability（mm） ≤10

Climbing capability（mm） ≤3°（5%）

Safety&protection Manual/Auto ●

Offset protection, Abnormal positioning protection ●

Components malfuction, communication fault protection ●

Bottom front LiDAR anti-collision（1/2pcs） ●

3D obstacles avoidance（Front/back 1/2pcs） ○

Fork front anti-collision（Light sensor） ●

Bumper strip（Truck head） ○

Emergency button（At least 2pcs） ●

Sound（Speaker）alarm、Light alarm（3-color light 2pcs) ●

Width light（Front, left, right 3pcs） ●

HMI（7 inches） ●

Monitoring camera —

Fork function Cargo detection ●

Cargo posture detection ●

Anti-pressure detection(Light sensors) ○

Cargo offset detection(Ultrasonic) ○

Space detection(LiDAR point cloud) ○

Auto fork distance adjust —

Lateral offset positioning —

Inclination detection —

Battery capability Recharging mode Manual/Auto

Manual recharging(Plug direct) ●

Battery replacing（Standard） Hoisting

Lateral replacing(less capability) ○

Battery type(Standard) LiFePO4

Voltage 24V

Standard Capability【Hoisting】 200/300Ah

Standard Capability【Lateral】（Ah） 200Ah

Operation time（h） 4-5h

Lifetime 3000 times, 70% left

Recharging station（Standard） 24V 100A

Visual function Pallet posture recognition（3D camera） ●

Fork feeding side detection（3D camera） ○

Weight detection（Weighing module） ○

Cargo falling detection（3D camera×2pcs） ○

Auto inventory（2D+3D cameras） ○

Bar code/RFID recognition（Reader/RFID sensor） ○
