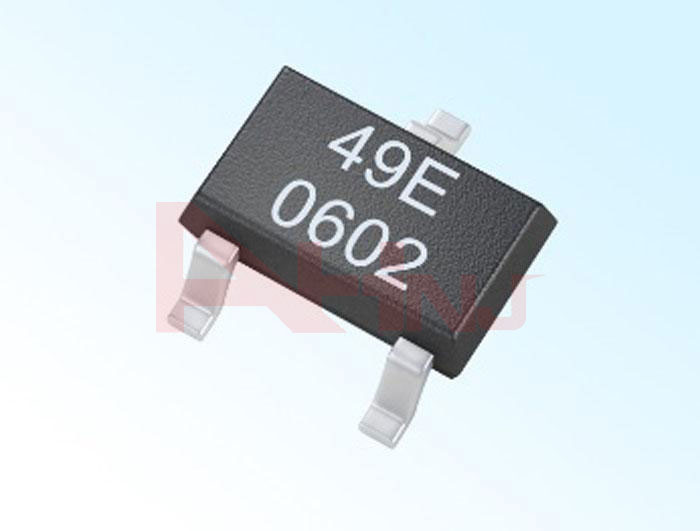

Linear Hall Sensor AH49E

Hall Sensor

Hall Switch

Features

Rated working voltage 4.5 V ~ 6.5 V;

Operating temperature range: -40℃ ~ 125℃;

Rail to Rail voltage output, Rated output current : 6 mA;

Variety of package forms and outer packings for your choice;

No mechanical contact, no spark, switch signal stability, no shaking moment, high reliability and safety;

Products meet the EU RoHS instruction 2011/65 / EU and REACH regulations 1907/2006 / EU requirements.

AH49E is a kind of analog signal output Hall IC, the output voltage changes with the changes of magnetic field. The sensor chip has built-in reverse voltage protection, voltage regulators, temperature compensation circuit, Hall-voltage generator, signal amplifier, and other circuit unit etc. Excellent voltage regulator and temperature compensation circuit ensure the sensor stable operates over a wide voltage range and temperature range, and the reverse voltage protection circuit avoids the sensor to be damaged by reverse voltage.
