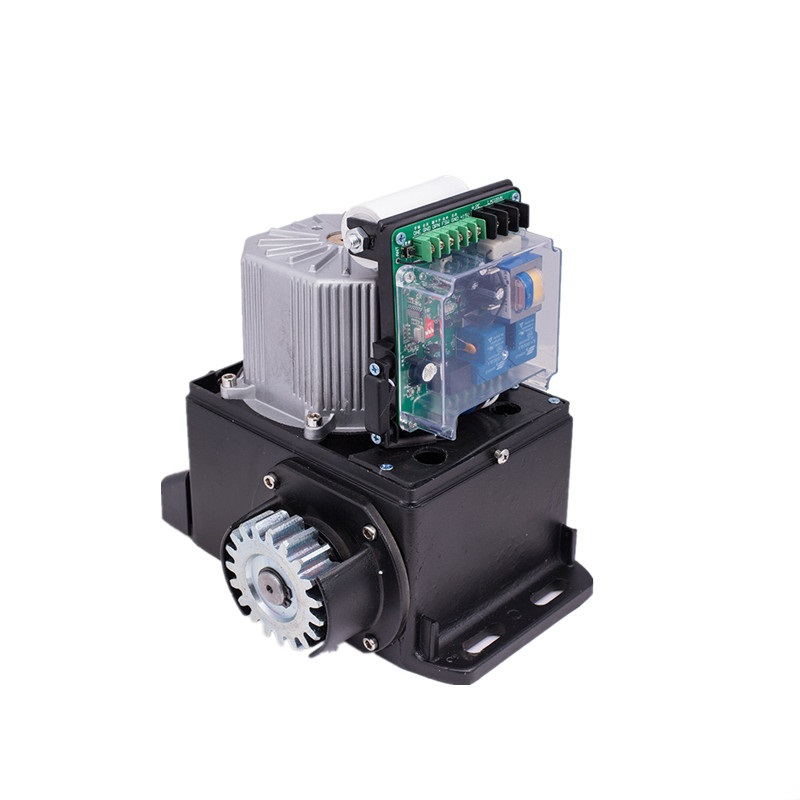

KS6002 Automatic Sliding Gate Motor Automatic door system factory Automatic Sliding Gate Operator wholesale

The series sliding gate motor are designed for automation of sliding gates up to a maximum weight of 500kg to 2000kg, featuring a control board with adjustable speed,force output,photocell terminals.They can be used for domestic and commercial use. They have a modern design, suitable for any environment. These motors have several features that make them resistant, strong, quiet and easy to install

Products features,

*QUIET & POWERFUL SERIES OF MOTOR-The integrated DC motor drives the gate opener smoothly while producing less than 58dB noise

*AUTOMATIC CLOSE-Featuring an auto-close option, this slide gate opener can be set to close in 12, 24, or 36 seconds after it opens; you can add extra 25pcs remotes to control this system for convenience.

*DURABLE WITH UNPARALLELED SAFETY-Constructed with aluminum base, copper worm-gear for durability; . RF Rolling Code Technology prevents your remote code from being accessible to others;

*SAFTEY- When obstacle in opening, gate will stop and when obstacle in closing, the door will reverse.; In the closing process, when beam of light barrier is covered, the gate will open immediately, to protect pedstrain security.

*INTELLIGENT CONTROL BOARD -- Soft start and slow stop function; Stop at any position; Self-learning of the door working; Easy to program and adjust the controller; Built in 433.93Mhz radio receiver; Pedstrain model faciliate the passagn of pedstrain,etc

Automatic Swing Gate Operator Technical Datas,

KS2805 KS3808 KS4001 KS5505 KS6002

Power supply 110V-240V AC,50hz/60hz 110V-240V AC,50hz/60hz 110V-240V AC,50hz/60hz 110V-240V AC,50hz/60hz 110V-240V AC,50hz/60hz

Motor power 280W 380W 400W 550W 600W

Gate moving speed 11-13m/min 11-13m/min 11-13m/min 11-13m/min 11-13m/min

Output torque 16N.m  18N.m  22N.m  32N.m 40N.m

Output shaft 46mm 50mm 50mm 56mm 56mm

Max gate weight 500Kg 800Kg 1000Kg 1500KG 2000Kg

Remote control Frequency  433.92 MHz

Remote control distance ≥30m

Remote control mode Single button mode/ Three button mode

Limit switch  Magnetic limit/ Spring limit switch

Noise  ≤58dB ≤58dB ≤58dB ≤50dB ≤58dB

Working temperature -20°C - +50°C

Package weight 10Kg 11Kg 14 Kg 16.5KG 17Kg

Automatic Gate Controller Functions,

Soft start and soft stop yes

Working time(adjustable) 5-100s

Pause time(adjustable) 5-100s

Stop speed (adjustable) yes

Auto close yes

Auto reverse when meet obstacle yes

Self-learning function yes

Motor brake yes

Eletric lock yes

Transmitter stored 25pcs

External output 24V

External switch One button loop/three buttons

Photocell protection yes

Motor running direction(adjustable) yes

Resistance when open and close yes

Pedestrian model yes

Manual release yes

These sliding gate motors have several features that make them resistant, strong, quiet and easy to install. If you need, welcome to contact us to know more.
