Smart + Automatic System Hanging LED Screen

ONUMEN Smart Series & Automatic System

ONUMEN Smart series & automatic system is a creative solution integrating indoor foldable LED display and automatic lifting and lowering system.

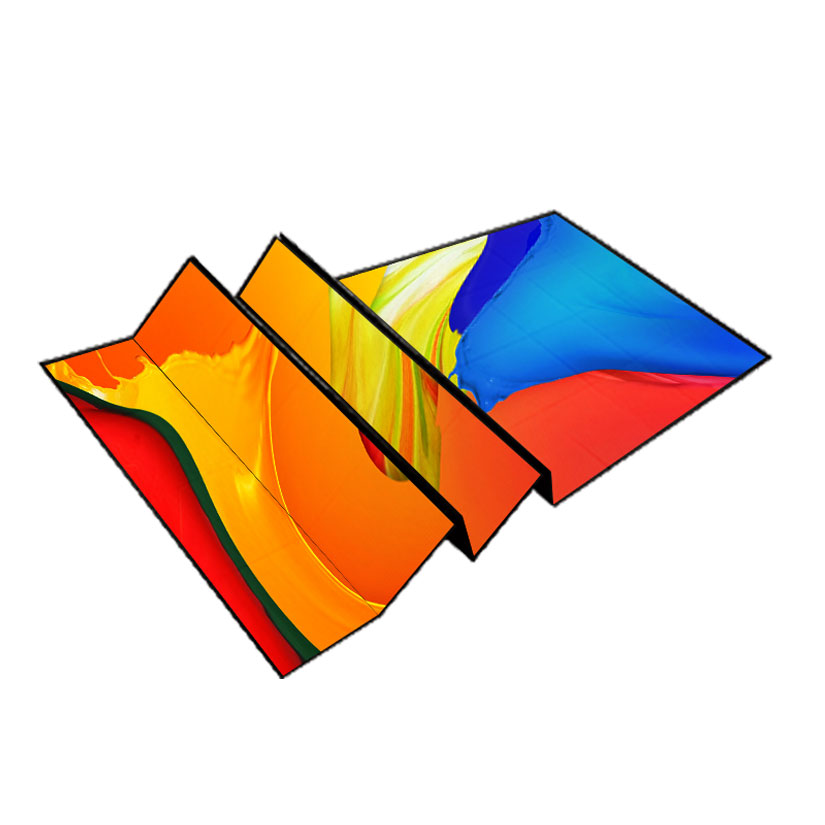

Thin and light, the 360° foldable LED display features remote lifting and lowering, easy storage and hanging installation.

With the electric lifting and lowering device, creative screens can be easily realized for a more desirable viewing experience.

Remote Control LED Display Highlights

Module size: 250mm * 250mm.

360° foldable.

For indoor use IP43 rating.

Automatic folding and unfolding through the motor and tray.

Improved space efficiency and quick installation.

Prior service with no need for maintenance access.

Thin and foldable, enabling safety excellence and minimal impact in case of dropping.

Details of Smart + Automatic System Hanging LED Screen

Screen

Application Environment Indoor

Model Smart 3 Smart 5 Smart 6 Smart 7

Pixel Pitch (mm) 3.9 5.2 6 7.8

IP Rating IP43 IP43 IP43 IP43

LED Type SMD 1010 SMD 2020 SMD 1921 SMD 1921

Pixel Density (pixel/㎡) 65536 36864 27777 16384

Driving Mode 1/16 1/12 1/16 1/16

Gray Scale (bit) 16 16 16 16

Max Brightness (nits) 1400 1500 3000 1800

Max Refresh Rate (Hz) 4000 5000 4000 4000

Module Resolution (pixels) 64 * 64 48 * 48 32 * 32 32 * 32

Module Size (mm) 250 * 250 250 * 250 250 * 250 250 * 250

Screen Thickness (mm) 14 14 16 16

Weight (kg/㎡) 12 12 10 12

Folding Angle 360° 360° 360° 360°

Viewing Angle (H/V) 110° / 110° 120° / 120° 120° / 120° 120° / 120°

Max Power Consumption (w/㎡) 900 670 380 220

Output Voltage (V) DC24/48 DC24/48 DC24/48 DC24/48

Input Voltage (V) AC100 ~ AC240 AC100 ~ AC240 AC100 ~ AC240 AC100 ~ AC240

Max Height of a Panel (m) 6 8 9 12

Best Viewing Distance (m) ≥4 ≥5 ≥6 ≥8

Brightness adjustment (levels) (digital) 256 256 256 256

Brightness adjustment (levels) (analog current) (option) 64-256 64-256 64-256 64-256

Contrast 2500:01:00 2500:01:00 2500:01:00 2500:01:00

Connection Type (standard) (spare) 2+14pin Soldering 2+14pin Soldering 2+14pin Soldering 2+14pin Soldering

50pin Connector 50pin Connector 50pin Connector 50pin Connector

Short Circuit Protection Yes Yes Yes Yes

Quick Maintenance Yes Yes Yes Yes

Controlling Mode synchronous synchronous synchronous synchronous

asynchronous asynchronous asynchronous asynchronous

Installation Method Hanging Hanging Hanging Hanging

Magnet mounting Magnet mounting Magnet mounting

Operation temperature (℃) -40 ~ 65 -40 ~ 65 -40 ~ 65 -40 ~ 65

Operation humidity (RH) 0% ~ 90% 0% ~ 90% 0% ~ 90% 0% ~ 90%

Certificate ROHS FCC TUV CE
