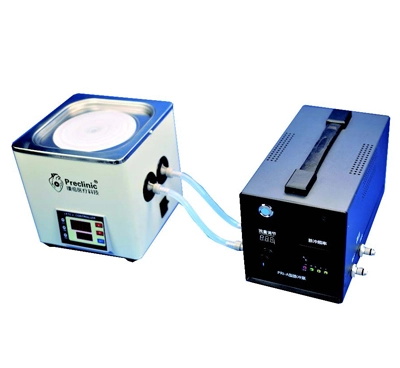

Cardiac Hemodynamic Simulation Device

This hemodynamic waveform simulator is mainly composed of a pulse pump system, a control system, and an output display system. It is used to provide a blood flow power source for a human blood flow simulation device, and can accurately adjust the required simulation parameters. Also, It is used to heat the simulated fluid of the cardiovascular model and control the temperature.

Features of Cardiac Hemodynamic Simulation Device

Composition: Analog pump, touch screen display, pressure sensor interface.

Product parameters:

• Pulsatile frequency: 10-160 beats/ min

• Flow range: 200-2,000 ml/ min

• Maximum output pressure: 250 mmHg

• Current/ voltage: 24V/ 3A

• Volume: 3L

• Power: 300 W

• Temperature control range: + 5°C-100°C

• Temperature control accuracy: ± 0.5°C

• Outer packing size: 640 * 420 * 320 (mm)

• Weight: 6.5 kg

Other characteristics: Hemodynamic simulation provides simulated fluid for the cardiovascular model and can adjust the temperature, flow rate, and pressure of the simulated fluid. The parameter adjustment accuracy is high, and the touch screen outputs a parameter curve.

Specification of Cardiac Hemodynamic Simulation Device

Cardiac hemodynamic simulation device MODEL: PLAB2001

Features Controllable output liquid frequency, flow, and temperature

Stable operation state, small size, lightweight and portable

Quick and easy joint connection and less liquid sprinkling

Output simulated blood with temperature for human hemodynamic simulation devices (e.g. water, preclinical lubricating fluid, blood, etc.)

Easy installation, applicable to cardiovascular hemodynamic demonstration and training devices.

Lead Time 15 days

Port Shanghai, China
