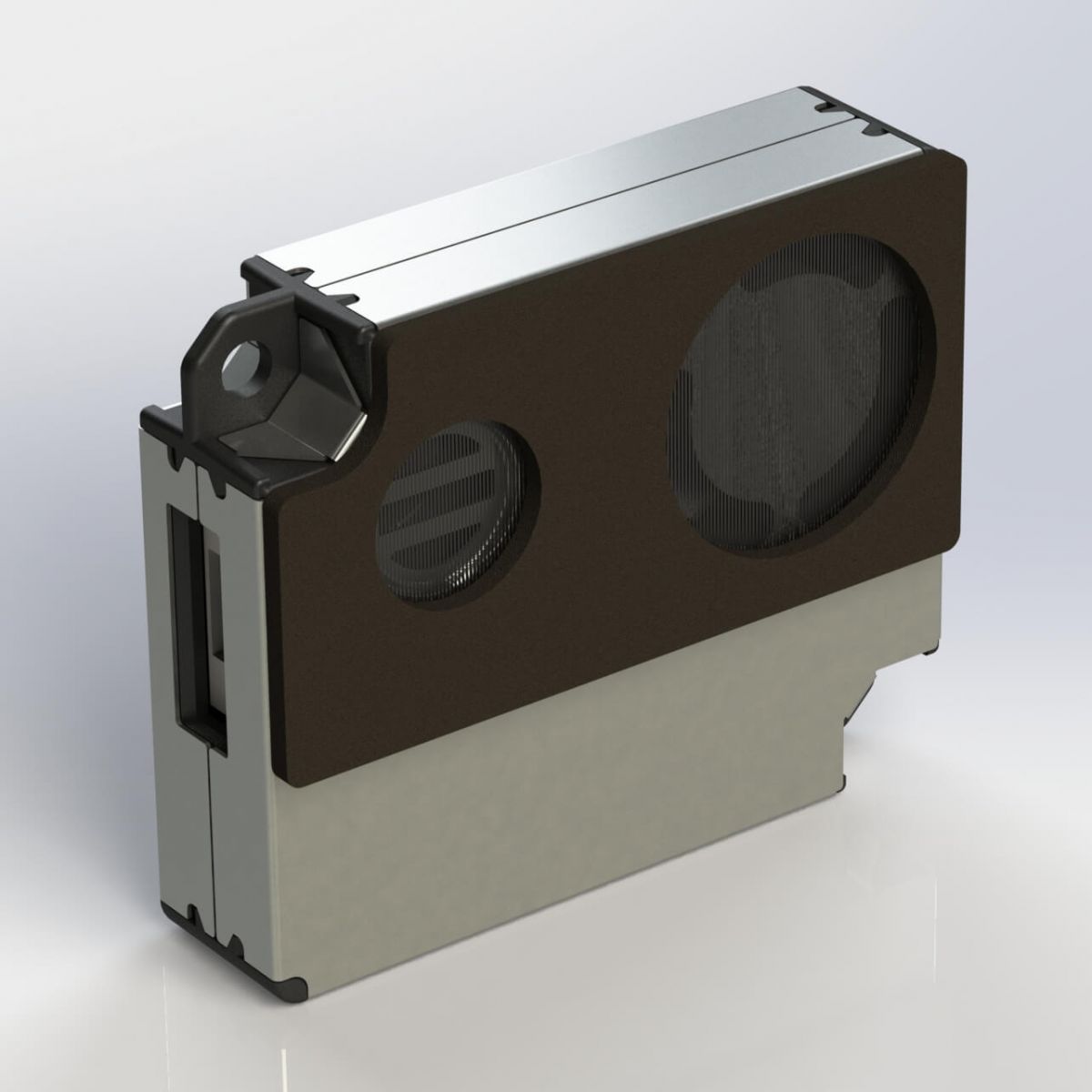

Laser PM2.5 Sensor Factory: Laser PM2.5 Air Quality Sensors, Low Power Consumption, Compact Structure, DC 5±0.5V, Ripple＜50mV, MTTF≥30000 Hours.

Specification Parameters

Measurement Type: PM2.5

Measurement Range: 0-1000μg/m3

Measurement Consistency: ≥100μg/m3: ±10%; ＜100μg/m3: ±10μg/m3

Measurement Accuracy (Reference Standard: TSI 8530): ≥100μg/m3: ±10%; ＜100μg/m3: ±10μg/m3

Data Interface: UART TTL, 9600 bps

Inlet and Outlet: Front

Power Supply: DC 5±0.5V, Ripple＜50mV

Working Condition: Temp: -15-60℃; Humidity: 0-90% RH

Storage Condition: Temp: -30-70℃; Humidity: 0-90% RH

Weight: 26g

Size: 48mm x 37mm x 12mm

MTTF: ≥30000H (Intermittent Mode: Intermittent Operation)
