Features

Video compression: MPEG-2/H.264 HD/SD

Audio compression: MPEG1 Layer II, HE-AAC(V1&V2) and LC-AAC, AC3 pass through

ASI and IP(UDP/RTP) output, IP output with 1*MPTS or 8*SPTS

Equipped with empty packets filtering of IP out

Input interface: HDMI, SDI, CVBS, YPbPr for video, 2*stereo or 4*Mono for audio

 Capable of multiplexing input signal with 1*external ASI in

 Providing PSI/SI compilation and NIT, LCN insertion

Multi-pass LookAhead CBR or VBR encoding

Built-in PCR capability

Applicable for one Seg / ISDB-T utilization (2 streams output simultaneously: 1 for one-seg and 1 for main stream)

Support Closed Caption(CC), EIA 608 and EIA 708

SNMP software remote control and centralized management

Introductions

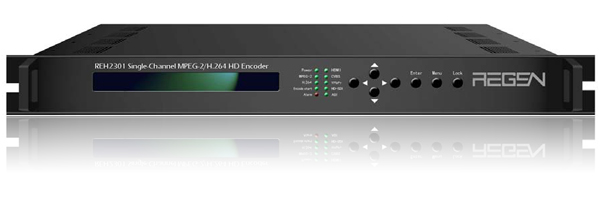

REH2301 MPEG-2/H.264 Single-Channel HD Encoder is a device designed in low latency, excellent performance and low bit rate, for audio & video compression, for digital TV head-end system. Adopted with MPEG-2 & MPEG-4 AVC/H.264 and MPEG-1 Layer II, HE-AAC & LC-AAC, AC3, the device is equipped with HDMI, SDI, YPbPr and CVBS for video, and also AES, dual-audio(balanced XLR & unbalanced L/R). An additional ASI input is also configured in this unit, providing function of multiplexing external TS with input audio and video signals, and also cascading with another encoder to eliminate quantity of multiplexer and save the space. Supporting both MPEG-2 and MPEG-4 AVC/H.264 standards, the encoder provides more functions for clients’ different applications in different circumstances. Its 1*ASI+1*ASI(backup) and 1*IP+1*IP(backup)(UDP) make it applicable to more systems, such as IPTV, etc..
