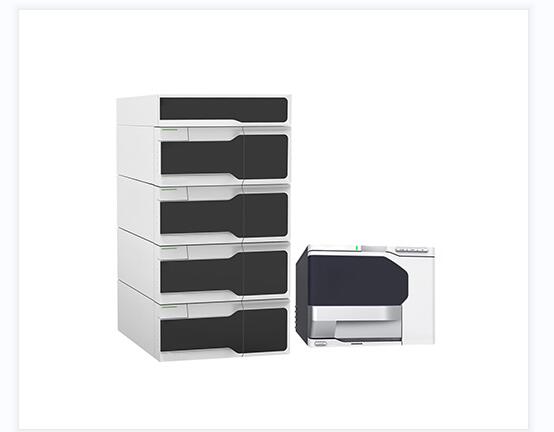

Organic Compound Comprehensive Tester RoHS 2.0 Tester LC-2800G Plus

产品说明
Features of Organic Compound Comprehensive Tester RoHS 2.0 Tester LC-2800G Plus
It is equipped with JHT test V chromatography software to realize the whole process computer control of the instrument, reduce the manual sampling error and improve the accuracy.
The infusion pump, column temperature box, detector, etc. all have the real-time leakage alarm monitoring function, providing guarantee for users to realize unattended operation.
The plunger rod is automatically cleaned to realize automatic online cleaning and reduce instrument loss and failure rate.
Shimadzu automatic sampler is selected to realize 24-hour unmanned automatic test, which can effectively reduce the manual workload with the data batch processing function.
The appearance of the whole machine adopts piano baking paint, two-color indicator light, keyless design, beautiful and generous.
JHT test V chromatographic workstation is specially designed for RoHS testing, which is easy to operate and realizes human-computer interaction.
The whole machine is equipped with degasser module to avoid bubbles generated by injector or gradient mixing, reduce baseline noise and baseline drift.
Completely separate the 4P spectrum peak of o-benzene, and improve the accuracy of qualitative and quantitative analysis.
The chromatographic data processing system has strict authority management function, built-in database management data, which can achieve audit tracking, ensure the safety and reliability of data, and comply with relevant regulations.
1、 Industrial Applications
The organic compound comprehensive tester, abbreviated as HPLC, is an analytical method for separating organic substances. As an important branch of chromatography, liquid is used as mobile phase, and high pressure infusion system is used to pump mobile phase such as single solvent with different polarity or mixed solvent with different proportion and buffer solution into chromatographic column with fixed phase. After each component in the column is separated, it enters detector for detection, so as to realize analysis of sample. This method has become an important application of separation and analysis technology in the fields of chemistry, medicine, industry, agriculture, commodity inspection and legal inspection.
LC-2800G Plus is an upgraded liquid chromatography product based on LC-2800G, which mainly deals with RoHS 2.0 substance detection in the electronic and electrical industry. The product can realize the separation and detection of most organic compounds. These include dealing with polybrominated biphenyls and polybrominated diphenyl ethers in RoHS directive, phthalates in REACH directive, California 65 phthalate test, formaldehyde and polycyclic aromatic hydrocarbons in EN71 toy directive; And the test of organic substances: fumaric acid, bisphenol A, azo fuel, nonylphenol, aromatic amine and other substances.
2、Coping With Detection
Coping detection: phthalates (PAEs), polybrominated biphenyls (PBB), polybrominated diphenyl ethers (PBDE), azo dyes (AZO), polycyclic aromatic hydrocarbons (PAHs), formaldehyde (Formaldehyde), fumaric acid (DMFU), dimethylformamide (DMFA), bisphenol A (BPA), nonylphenol (NP), RoHS 2.0 regulations, CP 65 regulations, REACH regulations should be equivalent
3、Product Overview
1. Detector
1) The flow cell with parallel double tapered holes greatly improves the signal-to-noise ratio, and the detection effect is better;
2) The power on self-test function is used to judge the accuracy of wavelength indication error through the positions of 254nm and 350nm on the spectrum, ensure the excellent wavelength accuracy, and ensure the best state of the instrument;
3) The control circuit adopts high-performance processor, and the software adopts multitask processing program control, which can realize the functions of switching the deuterium lamp, spectral scanning, starting the analysis program, etc.
