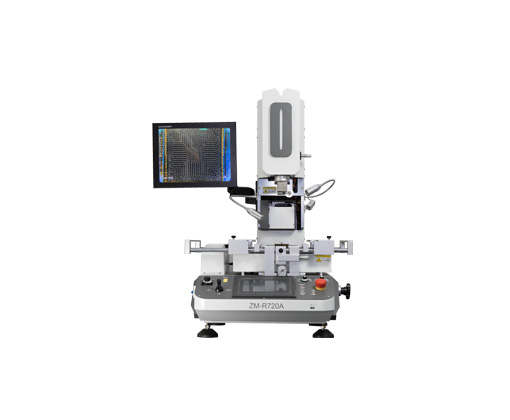

ZM R720A micro/mini BGA rework station is a precision optical intelligent LED rework station suitable for the rework of precision microdevices. This machine adopts imported HD CCD digital imaging, automatic optical zoom system, rework of precision microdevices, carbon fibre infrared BGA led heating tube, and automatic feeding. Besides that, Zhuomao also has other types of BGA rework stations for you to choose from.

Functions of R720A Micro BGA Rework Station

01 Carbon Fiber Infrared Heating Tube

The IR preheating zone uses carbon fiber infrared tube heating and high temperature resistant microcrystalline panel protection, and a multi-functional movable PCB fixing bracket.

02 Precision Tiny Devices and Automatic Feeding

Seamark dedicated to the repair equipment of precision micro devices, automatic feeding device, optional LED feeder feeding fixture.

03 High Definition Display

Using imported high-definition CCD (2m pixels) digital imaging system with automatic optical zoom, automatic control laser red-dot precision alignment, using 15' HD industrial display screen.

As one of the top BGA Rework China Station suppliers in China, Seamark ZM is famous for its rich technical force, complete detection means, reliable quality, good service. If you want to know the micro BGA led rework station and to get a perfect kind of repair machine for your factory, please contact Seamark ZM first.

Specification Of ZM R720A Micro/Mini BGA Rework Station

Power Supply AC220V±10%  50/60HZ

Power 6.15KW(Max)，Top heater(1.45KW)                                 Bottom heater (1.2KW)，IR Preheater (3.2KW),Other(0.3KW)

PCB Size 412*370mm(Max); 6*6mm(Min)

BGA Chip Size 60*60mm(Max);0.6*0.6mm(Min)

IR Heater Size 380*280mm

Temperature Sensor 1

Operation Method 7" HD touch screen

Control System Autonomous heating control system V2（software copyright）

Display System 15" HD industrial display ( 1080P  16:9)

Alignment System 2 Million Pixel HD digital imaging system, automatic optical zoom with laser  red-dot indicator

Vacuum Adsorption Automatic

Alignment Accuracy ±0.01mm

Temperature  Control K-type thermocouple closed-loop control with accuracy up to ±1℃

Feeding Device Yes

Positioning V-groove with universal fixture

Dimensions L810*W635*H870mm

Weight 84.5KG
