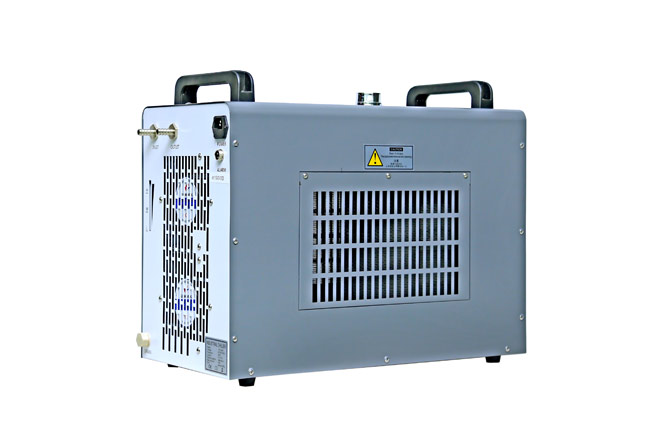

The 800W cooling capacity of CW 5000 water chiller can be used to cool a single 5kw CNC spindle or two 2.2kw CNC spindles. industrial chiller cw 5000 is a small-scale refrigeration type water chiller. It is cooled by a compressor and then circulated through a water pump and radiator to dissipate heat from the numerical control equipment into the surrounding air. The cooling temperature of CW5000 can be adjusted according to the actual needs of customers, which is very convenient to use.

Advantage Of CW5000 Water Chiller For 5KW CNC Spindle

The rated cooling capacity is 800W and the environmental Refrigerant R-134a is selected.

Small size, simple operation.

Temperature control mode: intelligent temperature control mode, constant temperature mode.

Temperature control accuracy ± 0.3 ℃.

Specification Of CW5000 Water Chiller For 5kw CNC Spindle

Model CW-5000AG CW-5000BG CW-5000DG CW-5000AI CW-5000BI CW-5000DI

Voltage 220V 220V 110V 220V 220V 110V

Frequency 50Hz 60Hz 60Hz 50Hz 60Hz 60Hz

Current 1.4~2.1A 3.5~5.6A 1.4~2.1A 3.5~5.6A

Compressor power 0.52KW 0.5KW 0.68KW 0.52KW 0.5KW 0.68KW

Refrigeration capacity 1.49KW 1.46KW 1.52KW 1.49KW 1.46KW 1.52KW

Refrigerant R-22/R-134a

Refrigerant charge 360g 380g 350g 360g 380g 350g

Precision ±0.3℃

Reducer Capillary

Protection Overcurrent protection for compressor, flow alarm, over temperature alarm

Pump power 28.8W 0.1KW

Tank capacity 9L

Inlet and outlet External Φ10mm Tower shaped joint Diameter Φ10mm speedy connector

Max. lift 8M 25M

Max. flow 10 L/min 16 L/min

N.W 28 Kgs

G.W 31Kgs

Dimension 56 X 28X 47 cm (L X W X H)

Package dimension 72 X 44 X 57 cm (L X W X H)

Application Of CW5000 Water Chiller For 5kw CNC Spindle

Applied to cool a single 5kw CNC spindle or two 2.2kw CNC spindles.

More Details Of CW5000 Water Chiller For 5kw CNC Spindle

Detachable Dust-proof Filter, Reasonable Arrangement Of Cooling Holesf

The Operation Panel Is Simple And Easy To Operate, And Can Be Directly Turned On And Used

It Is Simple To Install Water Pipe Joints At The Water Inlet And Outlet, And Is Also Equipped With An Alarm Signal Output Port

High-power Silent Fan To Achieve The Best Heat Dissipation Efficiency
