600*600mm large cross-section ram of 5 Axis CNC gantry type machining center to ensure that even when the ram is overhung, the gantry CNC 5 axis gantry type machining center maintains strong cutting rigidity. X/Y axes are each equipped with 4 roller-type linear guides, equipped with a high precision grating feedback system, with greater dynamic and static loading capacity and stronger motion vibration resistance.

The design of our 5 axis cnc mill for sale is that the fixed parts are made from mineral casting and the traveling parts are made of high strength alloy steel which makes our 5 Axis CNC gantry type machining center and vmc 5 axis machine have excellent precise retention, fast responsibility, and rapid traveling speed.

CNC GANTRY 5 AXIS TYPE MACHINING CENTER SPECIFICATION

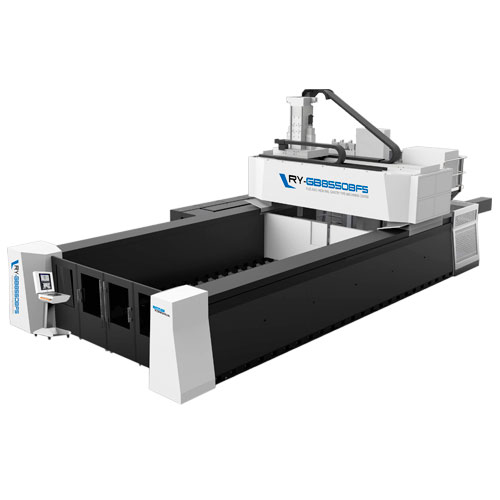

RY-GB 5-AXIS Gantry 5 Axis CNC Machine

Other 5-axis machining center you may search for

VMC 5 axis machine

Vertical Type DB-T Series 5-axis Machining Center

Most Required CNC Machines

CNC drill tap machine

Horizontal boring and milling center

CNC horizontal turning center

Planer type horizontal boring machine

Horizontal machining center with pallet changer

5 Axis Gantry CNC Machining Center Performance Features

1. High Precision: 5 axis gantry CNC machines offer high precision due to their ability to work in five axes of motion, including three linear axes (X, Y, and Z) and two rotational axes (A and B).

2. Versatility: Gantry five axis machining center provides versatility in terms of material types and size. They can be used to machine a wide range of materials, including metals, plastics, composites, and advanced materials.

3. Increased Efficiency: 5 axis gantry CNC machines can perform multiple operations on a single workpiece, reducing the need for multiple setups and increasing efficiency.

4. Large Work Envelope: Gantry CNC machines have a larger work envelope than traditional CNC machines, providing the ability to machine larger parts or multiple smaller parts at once.

5. Reduced Downtime: 5 axis gantry CNC machines can perform complex machining operations in a single setup, reducing the need for frequent tool changes, setups, and downtime.

6. Improved Surface Finish: The 5 axis gantry CNC machine's ability to move along multiple axes helps to improve the surface finish of parts, reducing the need for secondary processes such as polishing or grinding.

7. High Accuracy: 5 axis gantry CNC machines can achieve high levels of accuracy due to their ability to make precise movements along multiple axes.

8. Reduced Scrap and Rework: The precision and accuracy of 5 axis gantry CNC machines reduce the need for scrap and rework of parts.

9. Reduced Labor Costs: The use of an automated gantry CNC machine for complex machining operations reduces the need for skilled labor and manual labor, reducing labor costs.

10. Improved Time-to-Market: DEED 5 axis gantry cnc machining center for sale can produce parts quickly and with high precision, reducing the time-to-market for products, giving manufacturers a competitive edge.

5 Axis Gantry Machining Center For Milling And Drilling

A 5-axis gantry machining center is a highly advanced and versatile machine tool that enables precision milling and drilling operations with enhanced efficiency and accuracy. This type of machining center offers the capability to move the cutting tool along five different axes simultaneously, enabling complex machining tasks. The Deed 5-axis gantry type machining center is a prominent example of this technology. Let's explore the features and benefits of a 5-axis gantry machining center for milling and drilling applications:
