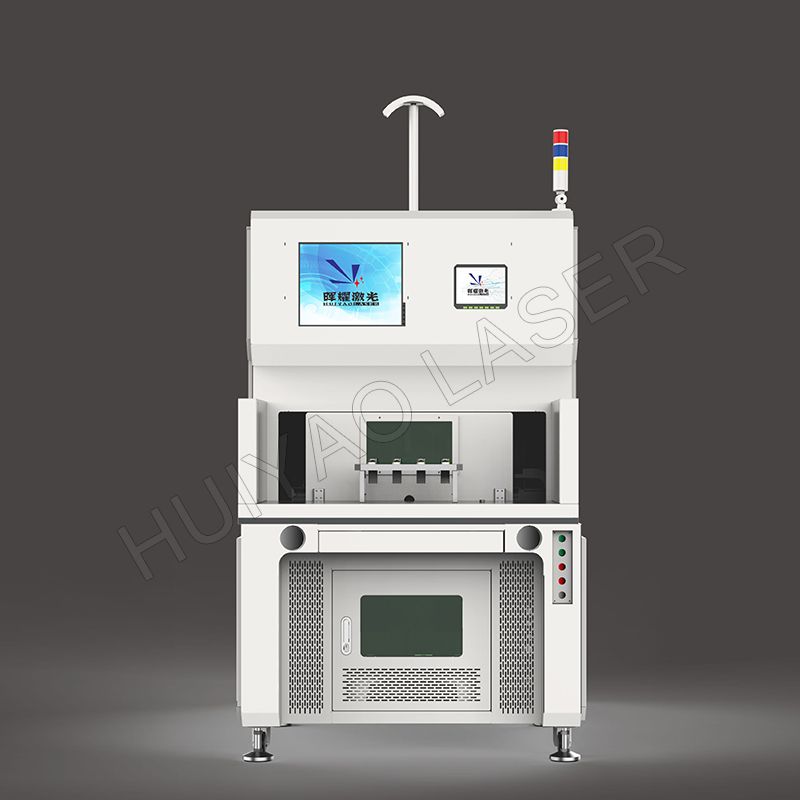

Blade lithium battery laser welding machine has high equipment utilization rate which can weld a variety of products for blade lithium battery module or packs

High utilization rate of equipment, can weld a variety of products;

Easy to replace, modular design, can quickly replace the fixture;

High positioning accuracy, simple operation, CNC programming or teaching method, easy to understand;

Blade lithium battery laser welding machine technical parameter

Model HY-1000w-6000w

Laser source 1000w-6000w

XYZ Travel customized

R Axis Optional, 360° rotation

Position Accuracy ±0.02mm

Repeatability Accuracy ±0.01mm

Motion Source Servo motor

Max Speed 500mm/s

Cooling Method Water cooling

Electricity Demand customized

Laser Wavelength 1080nm

Observation Syatem CCD system

Gas Protection Optional, Argon, Nitrogen

Environmental Requirements No vibration, interference and ventilation

Welding Penetration 0.1~3.0mm

Fixture customized

MOQ 1 set
