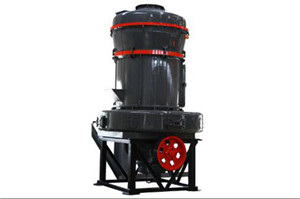

Raymond Mill Raymond Mill for iron ore custom Industrial Raymond Mill Grinding Equipment

Raymond Mill for mining Introduction:

                 Dingbo Raymond Mill is suitable for processing various non-flammable and explosive mineral materials with Mohs hardness less than 9.3 and humidity less than 6%. It is widely used in metallurgy, construction, chemical industry, mining, highway construction, etc. The particle size of the final powder size can be adjusted between 50 and 325 mesh (315-45 microns). Examples of processed materials include quartz, feldspar, barite, calcite carbonate, limestone, talc, ceramics, iron ore, corundum, bauxite, phosphate rock, coal, etc. There are about 400 materials in total.

How Raymond Mill works:

                  The jaw crusher crushes the large materials to the required particle size, and then is transported by the bucket elevator to the storage hopper, and is evenly and continuously sent to the host for grinding by the vibrating feeder. The pulverized dust flows from the blower to the classifier. After being classified, the particles that meet the fineness enter the cyclone separator through the pipeline and are collected and separated there. They are discharged at the discharge valve and become the finished product; the air flow is sucked into the blower by the return pipe on the top of the cyclone collector. The entire airflow system is sealed and circulates under positive and negative air pressure.

Industrial Raymond Mill's application:

                   Dingbo Raymond Mill is suitable for processing various non-flammable and explosive mineral materials with Mohs hardness less than 9.3 and humidity less than 6%. It is widely used in metallurgy, construction, chemical industry, mining, highway construction, etc. The particle size of the final powder size can be adjusted between 50 and 325 mesh (315-45 microns). Examples of processed materials include quartz, feldspar, barite, calcite carbonate, limestone, talc, ceramics, iron ore, corundum, bauxite, phosphate rock, coal, etc. There are about 400 materials in total.

Application areas:

feature:

Raymond Mill Features:

                     Its working principle is similar to the high-pressure suspension type grinder, but its grinding device is fixed with a pressure spring of 1000-1500kg. When the machine is working, under the action of high-pressure spring and centrifugal force, the grinding roller is close to the grinding ring. Under the same conditions, the grinding roller pressure is 1.2 times that of the high-pressure suspension mill, and the capacity is increased. 20% to 30%; when using rollers and rings, stable capacity and fineness can be ensured.

Raymond Mill for coal Technical data:

Raymond Mill's detailed specifications:

Model Roller Ring Max Feeding Size(mm) Finished Size(mm) Motor Power(kw) Capacity(t/h) Ocerall

Dimesion(mm)

Quantity(PCS) Diameter（mm） Height（mm） lnner Diameter(mm) Height(mm)

YGM7815 3 260 150 780 150 15 0.613-0.033 18.5 1-3 4300X3500X5100

YGM9517 4 310 170 950 170 25 0.613-0.033 37 2.1-5.6 7100X5900X7900

YGM4151 5 410 210 1280 210 30 0.613-0.033 75 2.8-10.5 9200X7250X9700

MTM160 6 440 270 160 270 35 0.613-0.033 132 5-20 12550X5700X8350

MTM175 5 520 280 1750 280 40 0.6-0.045 160 13-25 12275X9555X9916

[production time]: September 2019

[Location]: South Africa

[Material]: Quartz

[Yield]: 250t / h

[Equipment configuration]: jaw crusher, vibrating screen, vibrating feeder, cone crusher, Raymond mill
