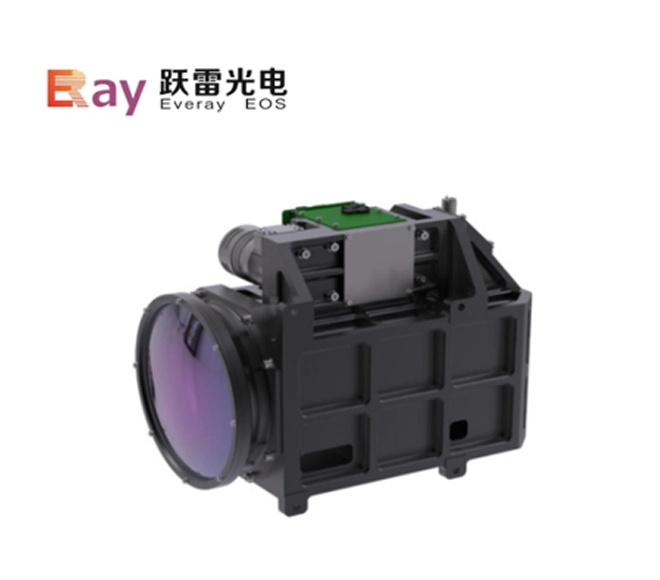

The SOFRADIR MARS LW high-quality long-wave refrigeration detector is used in the EverCoreL384C/L640C. EverCoreL640C lwir micro thermal optical camera module is stable and durable, has clear images, and can be used in a variety of harsh environments. The movement is appropriate for the integration and subsequent development of ultra-long-range infrared thermal imaging systems.

Specifications of LWIR Camera Module EvercoreL640C

Detector performance

Material LWIR Cooled FPA, MCT

Resolution 320×256

Pixel Pitch 30μm

Response Spectrum 7.7~9.5μm

NETD ≤25mK

Lens

Focal length 25mm~320mm continuous zoom

FOV 21.8°×17.5°~1.72°×1.38°

F/# 4

Optional Lens Focal length customizable

Image performance

Image Enhancement Automatic image filtering, digital detail enhancement

Zoom 2X

Polarity Black hot/white hot

Gain Auto/Manual

Auto focus Yes

Interface

Control RS422/RS232

Analog video out PAL

Digital video out LVDS/CameraLink

Power

Voltage +24V~+32V(Power protect)

Power consumption
