HIGO CONNECTOR-F.S-L*09C

MINI C

Customized solutions

Waterproof signal connector

More stable, smaller, more convenient design gives more possibilities.

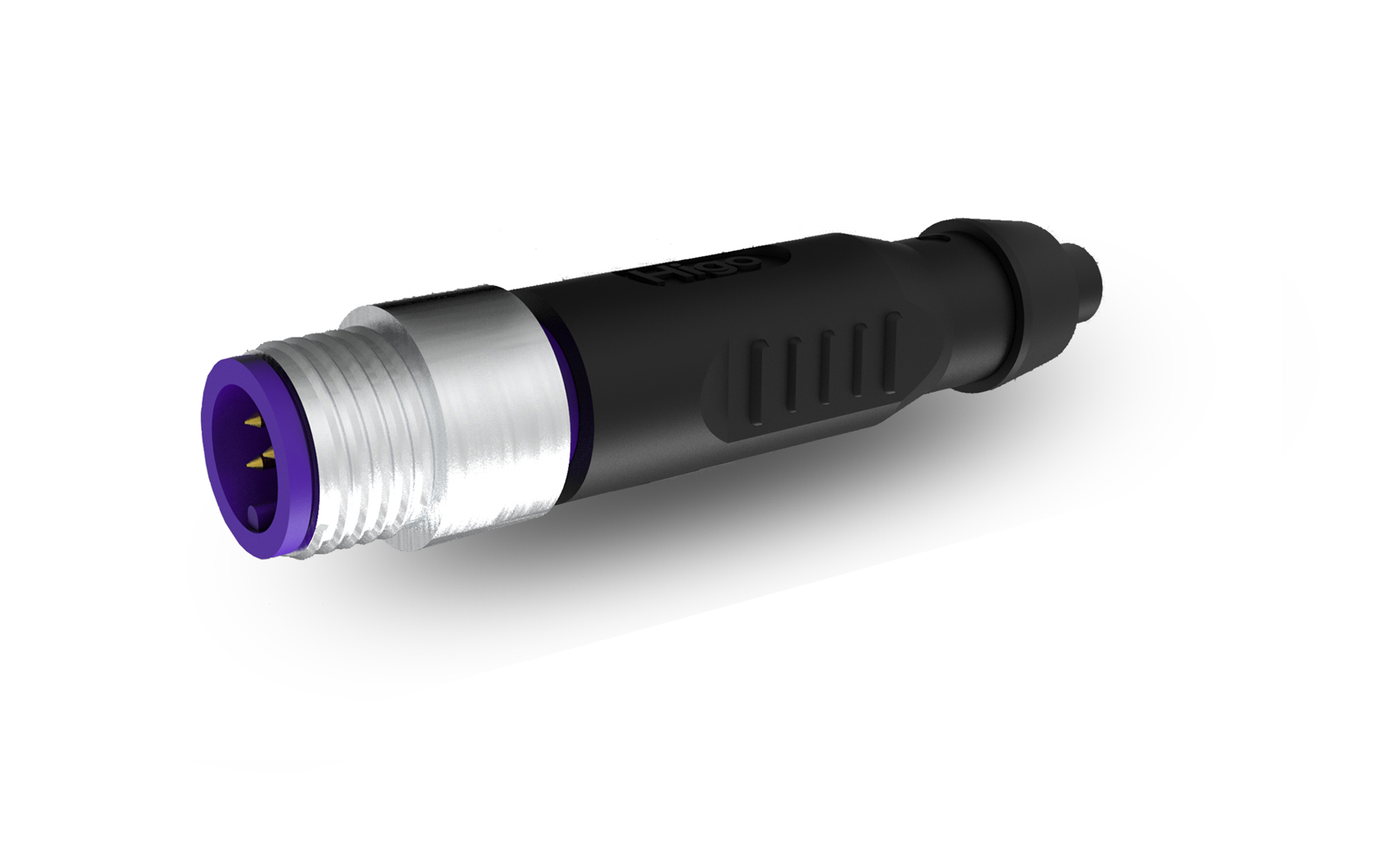

MINI C Signal connector

Rated Voltage 48V AC

Rated Current 2A

Withstanding Voltage 500V

Insulation Resistance ≥20MΩ

Contact Resistance ≤10mΩ

Mating Type Screw Locking

Mating Cycles 200Times

Operation Temperature -25℃~+80℃

Protection Degree IP67

Max Outer Diameter 9mm

Mating Length 68.6mm

Contact Material Copper alloy plated with gold which conforms to military standard

Wire Section 0.14mm²/ 0.20mm²

We are professional MINI C Signal connector supplier.
