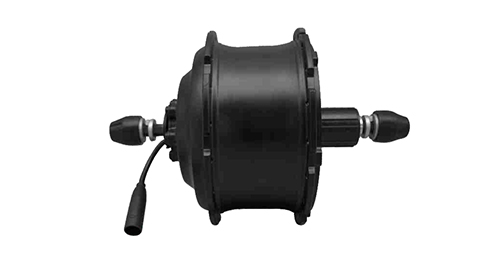

Shengyi powerful DGW25E hub motor 500w is strong enough to ride on rough mountain trail, which offers stable, smooth and continuous power to support 60NM max torque.

Main parameter of DGW25E-Rear Drive Motor-MTB

specification parameter

Driving position Rear

Wheel size 20in-28in

Spoke 36holes 12G

Rated power 500W (750W customized)

Rated voltage 36V~48V

Max.torque ≥60N.m

Efficiency ≥80％

Cable side Left

Number of magnet 16

Reduction gear ratio 1:05

Installation dimension 175mm(Cassette&Screw)190mm(Cassette&Screw)

Inside speed sensor 1~6

Hall sensor With/Without

Free wheel Cassette 9-10s/Screw 6-7s

Brake Disc-brake/ V-brake

Classification of waterproof IPX5

Weight 4.6Kg

As one of electric bicycle motor factories, we will do our best to meet all the needs of customers.
