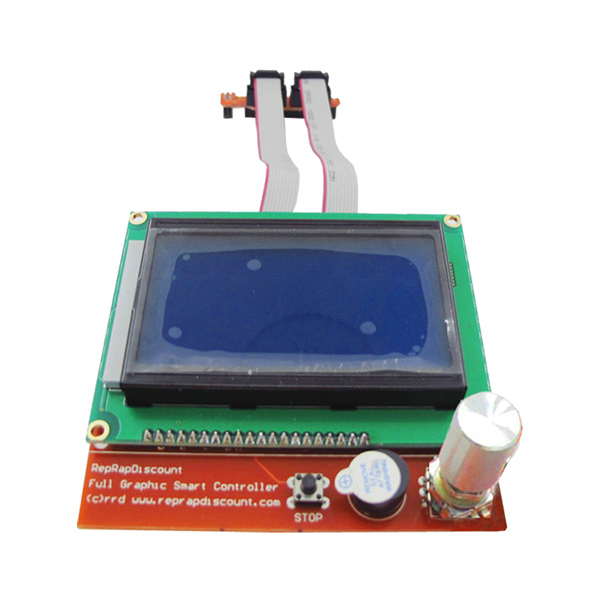

LCD12864 display for RAMPS1.4

Large display with SD card interface, with built-in encoder for data adjustment and document printing. Before insert with RAMPS controller to use, please revise its firmware. It’s very easy. Let’s take Marlin for example:

Marlin V1 (new)

In "Configuration.h”

Change “#define REPRAP_DISCOUNT_FULL_GRAPHIC_SMART_CONTROLLER” (just remove the “//” at the beginning)

==> REMEMBER TO INSTALL U8glib to your ARDUINO library folder:http://code.google.com/p/u8glib/wiki/u8glib

Upload the firmware, power off the Arduino, connect the panel, reapply power, and everything should work.
