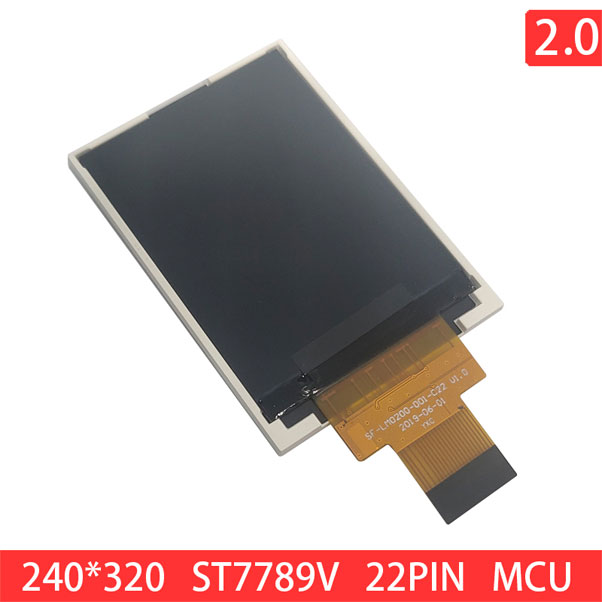

A simple 2.0″, The brightness is 450cd/m2 with contrast ratio 800:1, IPS Module, Transmissive, All Viewing Direction, Normal Black with 240 x 320 dots. Operating temperature covers from -20℃~+70℃, storage temperature range is from -30℃~+80℃.This single-display module is suitable for use in industry, household appliances, toys and medical treatment, etc.

General Specifications of 2.0 Inch TFT 240x320 QVGA 22PIN MCU IPS 450nits

No. Item Specification

1 LCD size 2.0inch

2 Resolution 240(RGB)×320

3 Active area 30.66(W)×40.8(H)mm

4 Module size 36.2(W)×51.8(H)×2.45(T)(Exclude FPC)mm

5 Interface MCU

6 Viewing Direction All

7 Polarizer Transmissive

8 Contrast Ratio 800:01:00

9 Brightness 450cd/m²

10 Back Light White

11 Pixel arrangement RGB vertical stripe

If you have needs to buy a 22 pin lcd display, please contact us.

As a tft module factory, we can offer kinds of tft lcd module for sale, if you have needs, please contact us.
