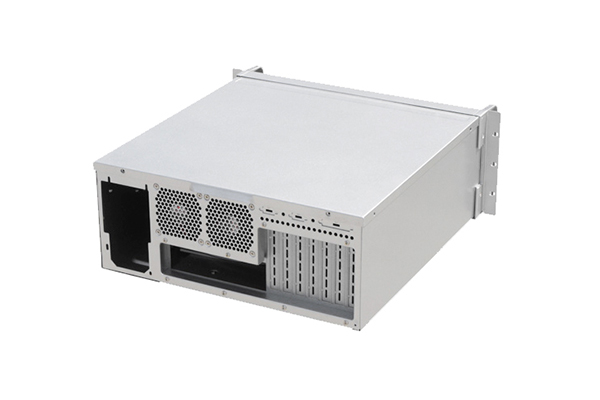

IPC-GS8410

Compatibility: with guide rails and extraction aids;

Reinforcement of the whole custom rackmount pc: reinforcement bars are pressed on both sides of the case, which largely increases the strength of the case;

Convenient opening of the lid: the rear of the case lid is opened with a grip position to facilitate the pulling out of the lid;

Easy replacement of the dust net: the dust net frame is designed with rails for easy pulling and replacement of the dust net;

EMC: the optical drive area is designed with folded edges to fit closely with the case, enhancing the resistance to radiation.

Benefits of 4U Rackmount PC

Motherboards: PICMG 1.0 standard full-length card, PICMG 1.3 standard full-length card, Micro-ATX standard single board, ATX standard single board

Micro-ATX standard single board, ATX standard single board

Baseboard: 14-slot standard PICMG 1.0 baseboard, 10-slot standard PICMG 1.3 baseboard

I/O interfaces: 2 front USB 2.0 ports, ATX boat switch, reset switch, power, and hard drive indicators, locking security

Power, HDD Indicator, Locking Security Door

Storage: Two 5.25" CD-ROM spaces, eight 3.5" HDD spaces (for shock absorption)

Operating environment: 0°C to 50°C; 5% to 90% (non-condensing)

Storage environment: -20°C to 60°C; 5% to 90% (non-condensing)

Power supply: Standard PS2 ATX power supply

Dimensions (W x H x D): 450 mm x 177 mm x 427 mm

Geshem a professional rugged tablet manufacturer, we provide panel pc, computers in industrial manufacturing, 4u pc, computer 4u, custom industrial computer and etc. Want to know more, contact us.
