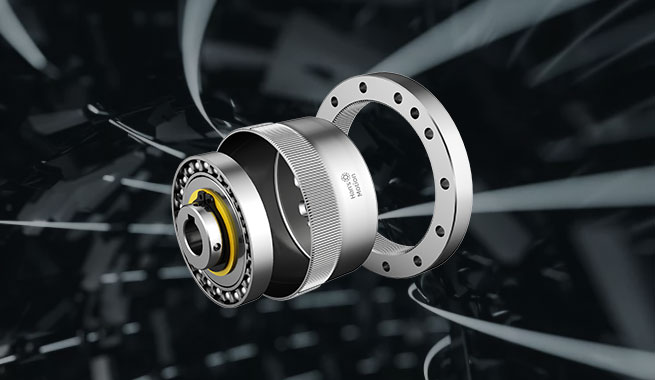

HMCG Series Harmonic Drive Cup Type

Drive system

$ 130 USD / Piraso

Bago

Hindi magagamit

Hindi magagamit

Magtanong

Paglalarawan ng produkto

HMCG Series is cup type of harmonic drive, it has the characteristics of compact and concise design, no backlash, input and output coaxial, excellent in positioning and rotation accuracy. Want to know more details about the HMCG Series harmonic drive gear box, such as harmonic drive gearbox price, contact Han's Motion china harmonic reducer.

HMCG Series Harmonic Drive Cup Type List

HMCG-Ⅰ Series Component Harmonic Gearing

HMCG-I high torque component set is our upgraded HMCS-I, consisting of just three individual components, with improved load capacity, strength & reliability and extending service life. Ideal for high torque applications, 6 sizes with ratios from 50:1 to 160:1 are available.

HMCG-Ⅱ Series Unit Harmonic Gearing

HMCG-II gears with a precision cross roller bearing and flange, compact, lightweight and easy to use. HMCG-II is available in 6 size with ratios from 50:1 to 160:1.

HMCG-Ⅱ-E Series Unit (Integral Cam) Harmonic Gearing

Compared with HMCG-II, wave generator with integrated cam for HMCG-II-E, gears with a precision cross roller bearing and flange, compact, lightweight and easy to use. HMCG-II-E is available in 6 size with ratios from 50:1 to 160:1.

Reducer Installation Of HMCG Series Harmonic Drive Cup Type

The Clearance Size Of HMCG-I Series Harmonic Drive And The Installation Of Wave Generator

Model A B C D E

14 1 33 1.5±0.2 38 17.1

17 1 45 1.85+0.2 45 19

20 1.5 53 1.95±0.2 53 20.5

25 1.5 65 2.1±0.2 65 23

32 1.5 86 2.6±0.2 86 26.8

40 2 106 3.45±0.2 106 3

Note:

C refers to the distance between the end face of the outer ring of the flexible bearing and the end face of the circular spline,

Please confirm the design size of the flange and wave generator in strict accordance with the clearance dimension of the harmonic drive gear box. If the size exceeds the clearance dimension, it will cause interference of the flex spline and flange or wave generator and affect the service life of the harmonic drive.
