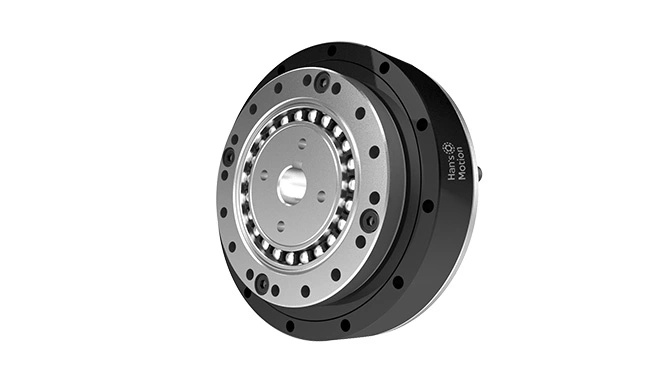

HMHG-II-E series flexspline is a hollow, hat-shaped standard structure, the whole structure is compact. The input shaft is connected to the wave generator's inner hole through an integral cam. power drive gearbox can adopt the connection mode with circular spline fixed and flexspline as the output end. And it also can adopt the connection mode with the flexspline fixed, the circular spline as the output end.

Features of HMHG-Ⅱ-E Simple Unit (Flat & Integral Cam) Series Strain Wave Gearing

Flat shape • Integral cam structure

Compact design

Zero backlash

Input/output coaxial

Excellent positioning accuracy and rotation accuracy

30%higher torque capacity than the HMHS series

43%longer lifetime than the HMHS series

Competitive quality with the above advantages of unit (hollow shaft) strain wave gearing, inquiry Hansmotion to buy power harmonic drive

Applications of HMHG-Ⅱ-E Simple Unit (Flat & Integral Cam) Series Strain Wave Gearing

Industrial Robots

Service Robots

Machining Center

Diagnostic Imaging

Parameters of HMHG-Ⅱ-E Simple Unit (Flat & Integral Cam) Series Harmonic Gearing

As a harmonic drive company, we can provide types of harmonic drive for sale, if you are interested, please leave us a message.
