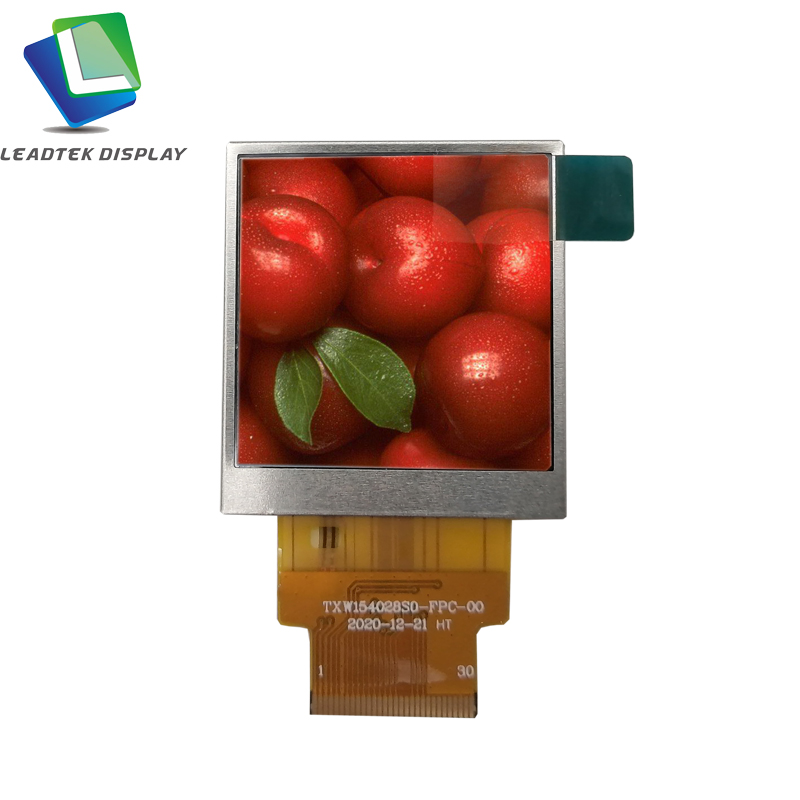

1.54 Inch TFT LCD Screen With 240x240 LCD Resolution MCU Interface

This display module is a transmissive type color active matrix TFT(Thin Film Transistor) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This module composed of a TFT LCD module, a driver circuit, and a back-light unit.The resolution of a 1.54” contains 240(RGB)x240 dots and can display up to 16.7M colors. (S)

Specification of 1.54 Inch TFT Touch Screen With 240x240 Resolution MCU Interface

Model Number LTK0154P3021TX

Size 1.54"

Display model Normally Black

Resolution 240*3RGB(H)X240(V)

Interface 8bit MCU interface

Outline dimension (mm) 31.92(W) ×35.11(H) ×2.13(T)

Active area (mm) 27.72(W) ×27.72 (H)

Brightness TBD

As a tft touch screen supplier, we will do our best to meet all the needs of customers.
