I Series Fixed Outdoor LED Video Screen,Outdoor LED Display,Outdoor advertising screens

Item: Outdoor LED Screen:

Application: Shopping Centers, Building Wall, Billboards, Outdoor Advertising.

Certificates: FCC, CE, EMC, LVD.

Services: 5 Years Warranty

Outdoor Fixed LED Screen Specification

Item I Series Fixed I Series Fixed I Series Fixed I Series Fixed I Series Fixed

Pixe Pictch 4mm 5mm 6mm 8mm 10mm

Led encapsulation SMD1921 SMD2727 SMD2727 SMD3535 SMD3535

Scan Mode 1/8 Scan 1/8 Scan 1/8 Scan 1/4 Scan 1/2 Scan

Pixe Per Sq.m 62,500 Pixel 40,000 Pixel 27,777 Pixel 15,625 Pixel 10,000 Pixel

Module Size(W*H) 256*128mm 160*160mm 192*192mm 256*128mm 320*160mm

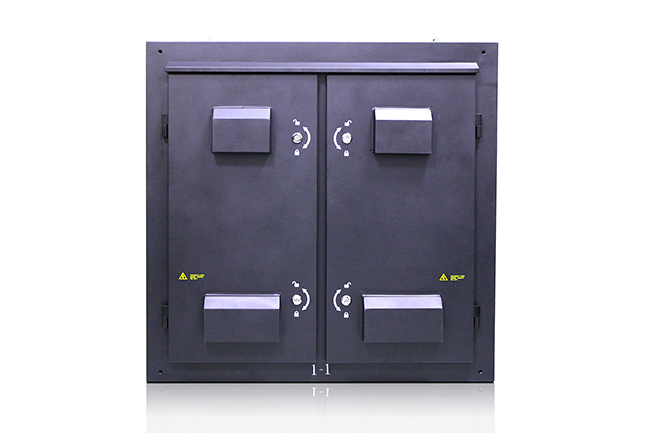

Cabinet Size(W*H*D) 1024*768mm 960*960mm 960*960mm 1024*768mm 960*960mm

Cabinet Weight 45KG/Pieces 55KG/Pieces 40KG/Pieces 45KG/Pieces 50KG/Pieces

Max Power Consumption 1200Watt/㎡ 1000Watt/㎡ 1000Watt/㎡ 800Watt/㎡ 750Watt/㎡

Brightness(Nits/㎡) 5500Nits 5500Nits 6000Nits 6500Nits 8000Nits

Maintenance methods Rear Service

Cabinet Material Steel

Refresh Rate 1920hz

Color temperature 6500K ±500（Adjustable）

Grey Scale 14-16bits

Average Power Consumption 500Watt/㎡

IP Protection IP65 Front/Rear

Operating Temperature -20°C to 50°C

Working Voltage 110-240Volt(50-60hz)

Hot Sale LED Video Wall, which include Outdoor Advertising Screens, Indoor Rental LED Screen, Floor Standing LED Display, See-Through LED Display, HD LED Vedio Panel. Low price, high quality. All LED Video Display provides 5 years warranty service.
