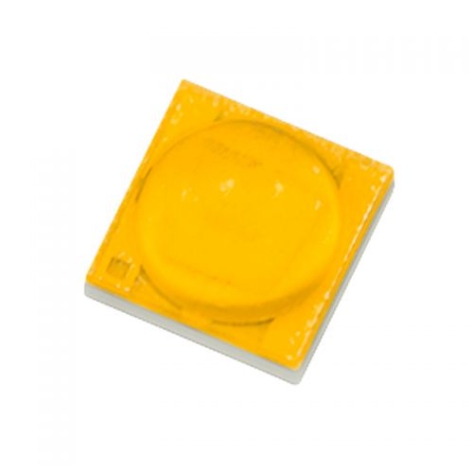

3W Flip Chip 3535 SMD LED White

Flip Chip White Color 3W 3535 SMD LED for Industrial Lighting

Surface Mount Technology 3535 package for cost-effective, compact high power LEDs  with small size high flux density LED Diodes. The good raw material (silicon lens, ceramic base) enable the 3535 SMD LED with fast heat dissipation, low thermal resistance and high reliability.

Product Features

• High luminous efficacy

• Ceramic base with high heat conductivity

• Flip Chip Technology, no gold wire soldering

• Operating current 350-700mA, up to 1000mA

• >50000Hrs

• RoHS compliant

• Available in CRI70+, 80+, 90+

• W R G B Y A UV IR a variety of colors for choice

• Outdoor landscape lighting, stage lighting, smart lighting, etc

Product Specification

Color CCT (K) VF

(V) IF

(mA) CRI Luminous Flux

(lm) Part Number

Warm White 2600-2900 2.8-3.4 700 80 220-240 MN-FC3535C273220B

Warm White 2900-3200 2.8-3.4 700 80 240-260 MN-FC3535C303240B

Natural White 3800-4200 2.8-3.4 700 70/80 260-280 MN-FC3535C403260A/B

Pure White 4800-5200 2.8-3.4 700 70/80 280-300 MN-FC3535C503280A/B

Pure White 5500-6000 2.8-3.4 700 70/80 280-300 MN-FC3535C573280A/B

 Cool White 6000-6500 2.8-3.4 700 70/80 270-290 MN-FC3535C603270A/B
