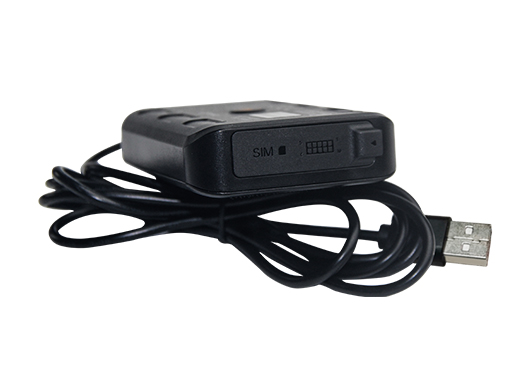

PDS professional commercial vehicle 4G tracker, which can be used to locate vehicle location information and view vehicle working track. At the same time, due to the compact design of PB002 commercial asset tracker gps vehicle trackers, it can be installed in a hidden location of the vehicle and is not easy to be found.

For gps vehicle tracking fleet management , this small 4G tracker can help to obtain a lot of vehicle data information to help the fleet manage effectively.

Highlights of PB002 LTE Waterproof Standby Asset Tracker Vehicle

Integrated LTE-M communication module, high-precision Beidou dual-mode GPS module.

Compatible with 9-36V power systems for passenger cars and commercial vehicles, so it can be installed on Bus, taxi, truck, personal car, business car etc.

It is able to monitor vehicle location, detect driving behavior, voice communication and remote control. It can extend various peripherals with I/O interfaces, such as temperature sensor, door detection sensor and camera etc.

An intelligent device for fleet management. The vehicle running status, vehicle condition data, vehicle fuel consumption data, driver control data, etc.

Specification of PB002 LTE Waterproof Standby Asset Tracker

Item Description

Indicator 1: Power indicator: green

2: Positioning status indicator: blue

3: CAT M1 status indicator: orange

CPU ARM 32BIT Cortex-M4 CPU ( GD32F303RE ) , 120Mhz Max frequency,

GNSS positioning module GNSS module :

Support GPS, GLONASS, BD&QZSS; Support A-GPS function

CEP50: 2.5 meters (open field)

Capture Sensitivity: -148 dBm

Tracking Sensitivity: -162 dBm

Cold start: 32S typical(open sky)    Warm start: 1S

LTE module Built-in Quectel  BG95-M3  （CATM)

Cat M1:

B1/B2/B3/B4/B5/B8/B12/B13/B14/B18/B19/

B20/B25/B26/B27/B28/B66/B85

Cat NB2:

B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/

B25/B26/B28/B66/B71/B85

EGPRS:

850/900/1800/1900MH

Carrier Support：

Vodafone（global）

Deutsche Telekom（Europe）

AT&T/Verizon/T-Mobile/Sprint (North America)

NTT DOCOMO*SoftBank/KDDI（Japen）

Module certification：

SRRC/NAL/CCC（China)

CE（Europe)

FCC/PTCRB（North America)

JATE/TELEC（Japen)

G-SENSOR builtin 3-axis acceleration sensor

Button 1button (*example:  It can be defined as SOS button)

Power 2 power supply methods:

1. USB-C 5V power supply

2. 9-36v power input (*through extension 10-PIN interface)

Interface 1xUSB-C type interface (for power supply)

1x10-PIN extended function interface

1xNANO SIM card slot

Waterproof level IP67

Installation method 3M glue installation

Working temperature -30℃~+70℃  Humility:0%~90%RH
