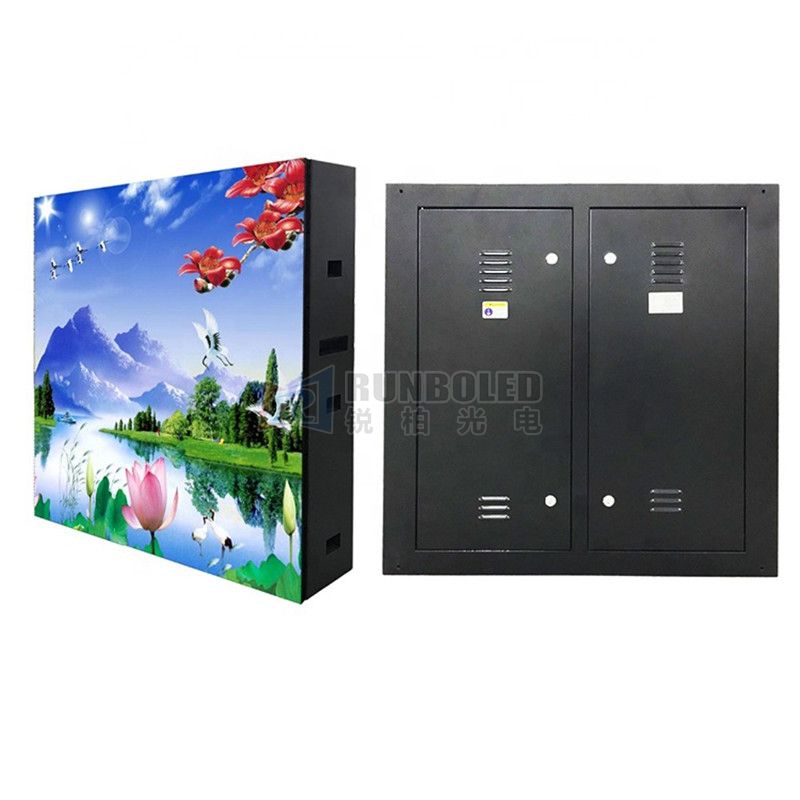

LED TV Display P5 with 960x960mm LED Cabinet for Outdoor Advertising Screen Showing

P5 Outdoor Advertising

Outdoor fixed led display P5, with 320x160mm led modules, 960x960mm led cabinet, high brightness and high resolution to display great images and videos.

Features of P5 Outdoor LED Panel:

1. High brightness: With Kinglight and Nationstar, to ensure the led lamp quality and it’s brightness, which is up to 5000nits

2. Large viewing angle: Horizontal with 140degree, vertical with 120 degree, suit for outdoor large place environment.

3. Iron cabinet and aluminum cabinet available according to the led screen installed environment,cabinet size can be customized.

4. High refresh rate, up to 1920-3840Hz, to ensure the image quality.

5. Hand holder and side lock design for the led cabinet, easily to carry the led cabinet and assemble them one by one.

6. Long life-span up to 2-5 years.

Specification of SMD LED Panle P5 Outdoor Fixed LED Cabinet:

Parameter Technical of P5 Outdoor LED Screen Supplier

Item Model Parameter

   LED Module Info. Pixel Pitch P5 Outdoor Fixed LED Panel

LED Lamp SMD2727

IC Driver MBI5124/MBI5051B/MBI5253

LED Module Size 320*160mm

LED Module Resolution 64*32dots

Color Temperature 3000-9000K

Drive Mode 1/8 scan

   LED Cabinet Info. Cabinet Size 960*960*120mm, customized

Cabinet Resolution 192*192dots

Cabinet Material Iron or Aluminum Cabinet

LED Module Quantities 3*6=18pcs

Cabinet Net Weight 45kg/pc

IP Grade Waterproof IP65

   LED Display Info. Best Viewing Distance 5m-50m

Viewing Angle H: 140°/ V:120°

Pixel Density 40000dots/㎡

Brightness 5000nits

Max.Power Consumption 956W/㎡

Ave.Power Consumption 430W/㎡

Refresh Rate 1920Hz-3840H, can be adjusted

   Control System Info. Operating System WIN98/2000/NT/XP

Control Method Synchronous display with control PC by DVI or Asynchronous with Wifi/4G/USB

Control System Linsn, Nova-star, Colorlight or as you required

Display Content Video, DVD, VCD, TV, picture, cartoon, graphics, texts.etc.

Frame Frequency 50Hz or 60Hz

Transmission Distance Multi mode fiber
