Rental Hire SMD Full Color LED Curve Screen Display

PRODUCT DESCRIPTION

Rental Hire SMD Full Color LED Curve Screen Display Description

Features of LED Display:

1. Indoor outdoor stage background are both available with different pixel pitch.

2. Straight & inner or outer arc with ±10°adjustable cabinet are available.

3. 500x500mm or 500x1000mm led cabinet size are available.

4. 500mm led module can be combined with 1000mm led module.

5. Front maintenance and rear maintenance are available, easy to do the maintenance.

6. Special design to protect the led lamp and led module not to broken.

7. Good heat dissipation,high resolution,good uniformity,light weight, wide viewing angle design.

Specification of Outdoor Mobile LED Panel:

Parameter Technical of P2.6/P2.8/P2.9//P3.9 Indoor and P3.47/P3.91/P4.81 Outdoor Hire LED Screen for Concert Party Events

Item Model Parameter

   LED Module Info. Pixel Pitch P2.6 Indoor P2.97 Indoor P3.91 Indoor P3.74 outdoor P3.91 outdoor P4.81 outdoor

LED Lamp SMD1515 SMD2121 SMD2121 SMD1921 SMD1921 SMD1921

IC Driver ICN2038S/MBI5124/ICN2153/MBI5252/MBI5153

LED Module Size 250*250mm

LED Module Resolution 96*96dots 84*84dots 64*64dots 64*64dots 64*64dots 52*52dots

Color Temperature 3000-9000K

Drive Mode 1/24s 1/21s 1/16s 1/18s 1/16s 1/13s

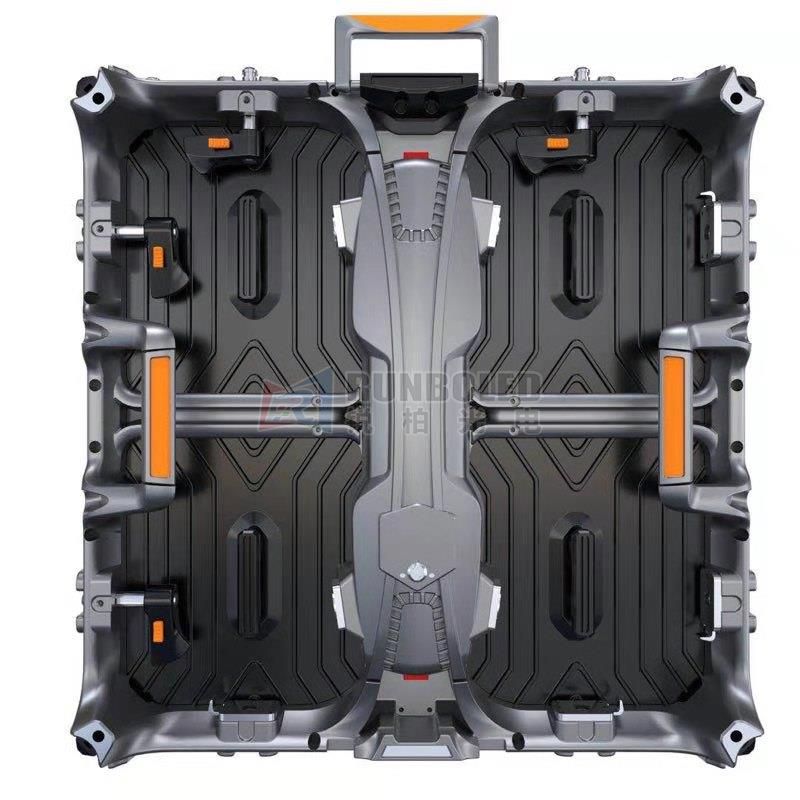

   LED Cabinet Info. Cabinet Size 500*500*80mm & 500*1000*80mm

Cabinet Material Die-casting Aluminum Cabinet

LED Module Quantities 2*2=4pcs & 2*4=8pcs

Cabinet Net Weight 7.5kg/pcs 8.5kg/pc

IP Grade IP43 Waterproof IP65

   LED Display Info. Best Viewing Distance 2-20m 3-20m 3-20m 3-20 4-30m 5m-50m

Viewing Angle H: 140°/ V:120°

Pixel Density 147456dots/㎡ 112896dots/㎡ 65536dots/㎡ 82944dots/㎡ 65536dots/㎡ 43264dots/㎡

Brightness 800cd/㎡ 800cd/㎡ 800cd/㎡ 3500cd/㎡ 3800cd/㎡ 4300nits

Max.Power Consumption 550W/㎡ 480W/㎡ 400W/㎡ 600W/㎡ 600W/㎡ 580W/㎡

Ave.Power Consumption 200W/㎡ 170W/㎡ 150W/㎡ 200W/㎡ 200W/㎡ 180W/㎡

Refresh Rate 1920Hz-3840H, can be adjusted

   Control System Info. Operating System WIN98/2000/NT/XP

Control Method Synchronous display with control PC by DVI or Asynchronous with Wifi/4G/USB

Control System Linsn, Nova-star, Colorlight or as you required

Display Content Video, DVD, VCD, TV, picture, cartoon, graphics, texts.etc.

Frame Frequency 50Hz or 60Hz

Transmission Distance Multi mode fiber
