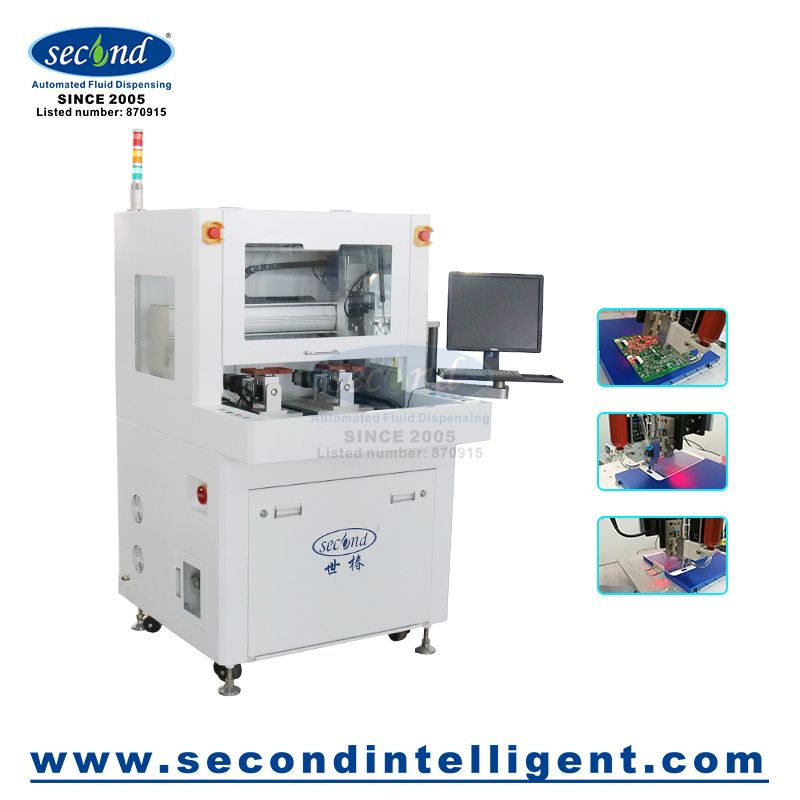

SEC-560ADY Wholesale high precision and high speed two shuttles standalone automatic dispensing machine

Model SEC-560ADY(Double Station) High precision dispensing machine

Motion System

XY Axis Speed Max: 500mm/s

Drive mode Servo motor/ ball screw

XY Accelerated Speed Max: 0.8g

XY Repeatability ±0.02mm

Z Axis Speed Max: 250mm/s

Z Axis Accelerated Speed Max: 0.3g

Z Axis Repeatability ±0.02mm

Visual Positioning & Dispensing system

Visual system German High-definition digital Camera

Light Source LED Red/Blue/White light source

automatic dispensing machine Working area

Max Working Area X(600)*Y1(320)*Y2(320)*Z100mm

high quality dispensing machine Conveying System

Off-line/ On-line Off-line

Platform Qty Standard Qty: 2pcs

Platform Specification Standard size 2*320*320mm

Platform Height 920±20mm

Platform load Max:15Kg

Z Axis load 6.5KG

desktop dispensing machine Control System

PC IPC, LCD Display, Keyboard & Mouse

Operation System Windows 7

Control Software Second Fluent

Liquid Control System

Glue Feeding Device Glue Tank(2600ml, 1.5 Gal, 5 Gal optional)

300CC Glue Cartridge (optional)

5CC/10CC/30CC/50CC Syringe(optional)

Dispensing Valve Pneumatic spray valve/piezoelectric ceramic spray valve(optional)

Back-suck valve(optional)

Screw down valve(optional)

Hitting valve(optional)

Dispensing nozzle (optional)

CE standard glue dispensing machine Standard configuration

Cleaning Cup Component Stainless Steel

Signal Light Device Red Yellow Green

Glue Dispensing Container Component Stainless Steel Cup

Safety Gate Grating Yes

Lift Gate No

automatic desktop glue dispensers Optional Function

Laser Altimeter Laser mode(Optional Customized)

Mechanical Height Detecting System Height detecting precision(For spray dispensing ONLY)(Optional Customized)

Automatic Nozzle Positioning System Precision: 0.01mm(For nozzle dispensing ONLY)(Optional Customized)

Weighting System Precision:0.1mg (0.01mg optional)(Optional Customized)

Heating System Temperature: Room temperature-150℃ adjustable(Optional Customized)

CAD Import Function DXF file

Vacuum Absorption Platform Customized(Optional Customized)

R axis Customized(Optional Customized)

two shuttles automatic dispensing machine Factory Requirements

Power Supply AC220V, 50/60Hz, 2.5Kw

Air Pressure 0.5-0.7Mpa, 0.2m³/h

Machine Dimension L985*W1092*H1645mm

Machine Weight 450Kg
