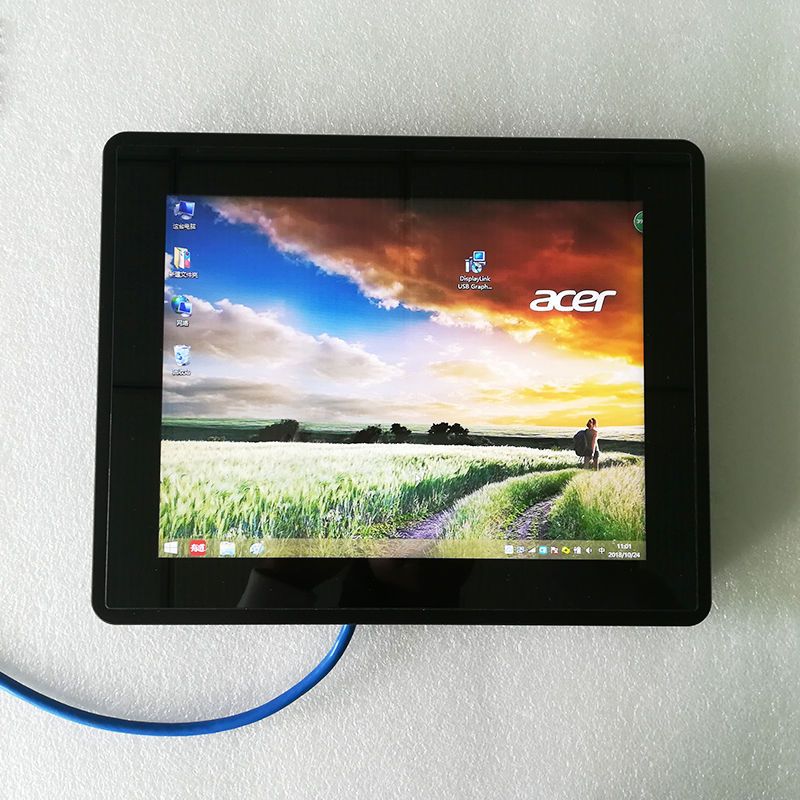

10.4 Inch USB Powered Touch Monitor

FEATURES:

1. Front bezel aluminum alloy brushed metal craft, seamless design, front IP65 waterproof and dustproof.

2. Industrial LCD panel,  wide viewing angle, high nits, true color.

3. Adopt multi-points PCAP touch panel, high sensitive and fast-response.

4. High performance mainboard, 7x24 continuous operation.

5. Support wall mounting, embedded mounting, desk stand mouting etc.

6. Support video signal, power and touch over a single USB3.0 cable.

Hot Sale USB Powered Touch Monitor:Shenzhen Shinho Electronic Technology Co., Ltd.Our company supply Embedded Touch Panel PC, Industrial Android Tablet PC, Stainless Steel Touch Panel Pc, Industrial Touch Monitor, Open Frame Touch Monitor, we have a whole set of quality Full IP65 High Brightness Touch Monitor. If you have interested in our Touch Screen Industrial PC, pls feel free to contact us.

SPECIFICATION:

LCD panel

Panel size 10.4"

Resolution 1024*768

Aspect ratio 4:3

Support Color 16.7M colors

Brightness (cd/m²) 400+

Contrast ratio 800:1

View angle 80°/80°/80°/80° (R/L/U/D)

Touch panel

Touchscreen Type Project Capacitive Touch (10 points )

Surface Hardness 7H

Luminousness 90%

Touch Interface USB (RS232 optional)

Touch response time 2ms

Working Life >50 million times

Touch options (5 wires restive touch, IR touch optional)

Signal Ports

USB 1×USB (support video signal, power, and touch over a single USB3.0 cable)

OSD

OSD control Brightness, contrast ratio, auto adjustment, H/V position, language select, etc.

Support languages English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese, etc.

Support OS Windows XP, Windows /7/8/10, Linux, Mac OS X, Android, ect.

Power Supply

External Power Supply AC 100 - 240V, 50-60Hz

Working voltage DC 12V

Power consumption ≤15W

Shinho is a China supplier of Wall Mounting Touch Monitor. We have a high-tech work shop on 10.1 Inch Industrial Touch Monitor. We have a complete quality management system. Choose us, you can be get most careful and thoughtful service!
