SERVICES:electronic material procurement, PCB production, PCBA assembly, cable assembly, finished product assembly, functional testing.

PRODUCTION LINES: 5 SMT high-speed production lines, 2 DIP production lines, 2 functional testing production lines, 2 finished product assembly lines.

CERTIFICATE:ISO9001, ISO14001, ISO13485, and IATF16949

APPLICATION:energy, communication, consumer electronics, computers and storage, security, automotive, medical, and industrial products.

Items PCB capacity

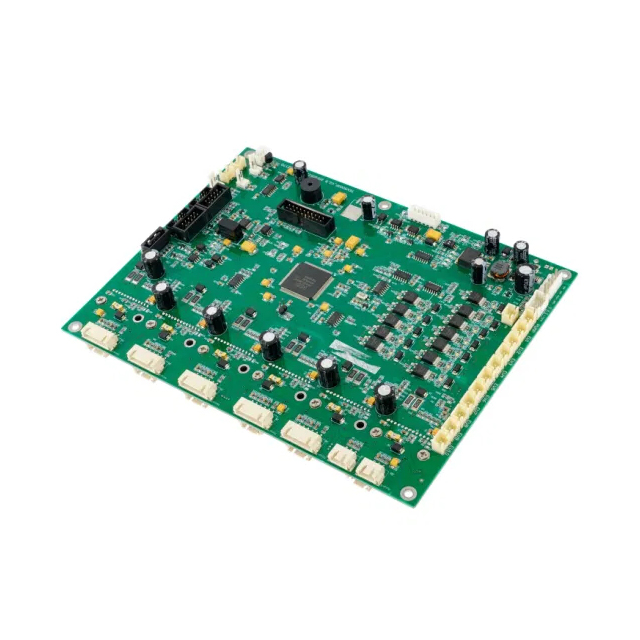

 PCB name Electronic PCB assembly manufacturer custom circuit board PCBA

 Material  FR-4; High TG FR-4; Aluminum; CEM-1; CEM-3;  Rogers, etc

 PCB type  Rigid, flexible, rigid-flexible

 Layer NO.  1, 2, 4, 6, up to 24 layer

 Shape  Rectangular, round, slots, cutouts, complex, irregular

 Max PCB dimensions  1200mm*600mm

 Board Thickness  0.2mm-4mm

 Thickness Tolerance  ±10%

 Min Hole Size  0.1mm (4 mil)

 Copper Thickness  0.5 OZ-3OZ (18 um-385 um)

 Copper Plating hole  18um-30um

 Min Trace Width  0.075mm (3mil)

 Min Space Width   0.1mm (4 mil)

 Surface finish  HASL, LF HASL, Imm Gold, Imm Silver, OSP etc

 Solder mask   Green, red, white, yellow, blue, black, orange, purple

 Certificate  ISO9001;ISO14001;ISO13485;IATF16949
