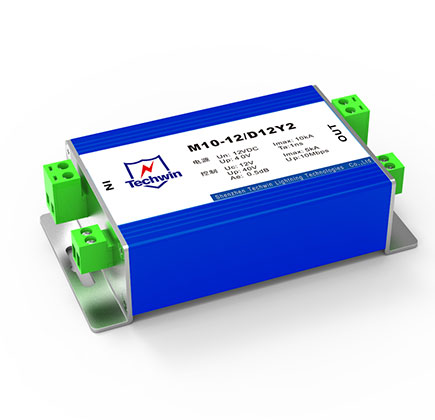

2 in 1 monitor lightning arrester(power and control), a Kind of SPD, designed for analog video/ digital camera to protect camera power, control line from lightning electromagnetic pulse, induced over-voltage, operating over-voltage.

Features of 2 In 1 SPD for CCTV M10-12 D12Y2

Multi. Protection circuits, Gas-Tube+ TVS technology

Dual protection in Common module and different module

3 in 1 protection

TVS array technology, low capacitance

Multi-Strike Capability

Easy to install and rigorous in structure

Application of 2 In 1 Surge Protector for CCTV Camera M10-12 D12Y2

Designed to protect monitor equipments (Power, data control), widely applied in bank monitor & safe guard system.

Monitor equipment for school, enterprise, road etc. security and protection.

Technical parameters of 2 In 1 SPD for CCTV M10-12 D12Y2

Model M10-12/D12Y2 M10-24/D12Y2 M10-220/D12Y2

Lightning projection zone(LPZ) 2

Standards Compliance IEC61643-1, EN60950,GB/T18802.21-2002,TB/T2311-2002, YD/T1235.2,YD/T 1235.2,YD/T 1542

According to IEC61643 III

According to DIN VDE6075 Part6(Draft 11.89) A1,A2 D

Max continuous operating voltage Uc 12VDC

Nominal discharge current (8/20µs) In 3KA

Max discharge current Imax (8/21µs) Imax 5KA

Transmission rate Vs 10Mbps

Limiting Voltage(10/700µs)component wire-Enclosure 40V

Nominal working voltage(Un) 12V 24V 220V

Max continuous operation voltage(Uc) 15V 30V 275V

Nominal discharge current Imax(8/20µs) 5kA

Max discharge current Imax(8/20µs) 10kA

Load current 0.5A

Protection level Up ( In) 60V 100V 900V

Response time (Ta) 1ns

Mounting Be Installed between protected equipment and signal line

Working conditions Clamped type

Dimension 112*60*25mm

Interface form Clamped type

IP code(IEC EN 60529) IP20

Error rate ≤10-12

Material/color Aluminum/Blue

Insertion loss ≤.0.5dB

Working conditions Temperature: -40 to 85℃, Relative humidity: ≤95％
