Quarter wave RF surge protector is designed for the RF system, protecting the signal line of communication equipment from lightning over-voltage, induced over-voltage, induced over-voltage, and operation over-voltage. The RF lightning arrestor is widely applied in RF circuit protection of wireless coverage, base station, etc.

Smart antenna, SDMA

IEEE G902 wireless LAN

IEEE 802.11b and 802.11g wireless LAN

PTN, MSPT

Transport Network

Access Network, FTTX, UTRAN

Base station antenna feeder

ISM

MMDS

Cellular

PCS

GPS

2G, 3G, 4G communication

GSM, CDMA, WCDMA, TD-LTE, FDD-LTE

Features Of 1/4 Wave RF Lightning Arrestor

Wide frequency band

Large discharge current

Extremely low insertion loss and VSWR

QWS technology

Good performance from DC to 3GHz

Low strike throughput energy

Withstand multiple lightning strikes

Bi-Directional Protection

Technical Parameters Of 1/4 Wave RF Surge Arrestor

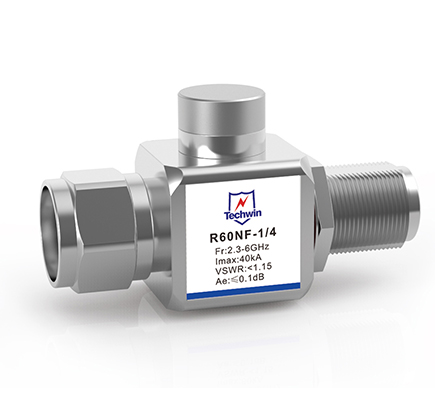

Model R27DF-1/4 R27NF-1/4 R60NF-1/4 R05NF-1/4

Lightning protection zone(LPZ) 1-2

Class

According to DIN VDE 6075 Part 6 (Draft11.89)A1, A2 C

According to IEC61643 II

Max discharge current Imax (8/20µs) Imax 50KA 40KA 40KA 30KA

Working frequency 0.8--2.7GHz 0.8--2.7GHz 2.3-6GHz 0.4-0.5GH

Protection level In Up ≤200v

Insertion Loss ≤0.1db

Standing-wave ratio ≤1.15

Interface form UHF N DIN BNC

Working conditions Temperature: -40 to 80℃, Relative humidity: ≤95％

Standards compliance IEC6000, EN60950

Mounting Be installed between protected equipment and the signal line

Material stainless steel +Copper/ silver white

IP code IP20

Connector type DIN N N N

As a spd manufacturer, we can offer kinds of spd types for sale, anything you need, please contact us.
