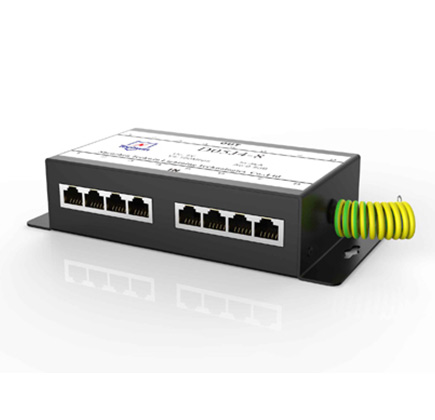

Data line surge protector series are mainly used in TCP/IP communication networks to protect electrical and electronic equipment's signal line from the impact of lightning electromagnetic pulse, induced over-voltage, transient operation, and resonance overvoltage.

Features Of SPD For Network / Data Line Surge Protection

Multi. Protection circuits, Gas-Tube+ TVS technology

Dual protection in Common mode and differential mode

TVS array technology, low capacitance

Multi-Strike Capability

RJ45 connector

Application Of SPD For Network / Data Line Surge Protector

CAT5e and CAT5 compatible

10/100 Base-T Ethernet protection

LAN, FDDI, CDDI, ATM

PDH, SDH, SPDH

Industrial control

Loss prevention system device; Security system; Security integration.

IASP; VSCS; ESA; ACS; exit-inlet control system; exit-inlet control system

Installation And Wiring Diagram Of SPD For Network / Data Line Surge Protector

Specification Of SPD For Network / Data Line Surge Protector

Model D05J4 D05J4-8 D05J4-16 D05J4-24 D05J8H

Lightning projection zone(LPZ) 2

Standards Compliance IEC61000, EN60950,GB/T18802.21-2002,TB/T2311-2002

According to IEC61643 III

According to DIN VDE6075 Part6(Draft 11.89) A1,A2 D

Max continuous operating voltage Uc 5V

Nominal discharge current (8/20µs) In 3KA

Max discharge current Imax (8/21µs) Imax 5KA

Voltage protection Level ≤55V

@C2(8/20µs) Up

Voltage protection Level ≤25V

@C3(1kV/µs) Up

Rated load current IL 200mA

Limiting Voltage(10/700µs) ≤20V

Cut-off Frequency fG 250MHz

Response time tA (L-N/N-PE) 1ns

Protection line 1/2,3/6 1/2,3/6,4/5,7/8

Protection port 1 8 16 24 1

Mounting Be Installed between protected equipment and signal line

Adapt Transmission rate 100Mbps 1000Mbps

Transmission standards 100BaseT/ 1000BaseT/1000Base TX,CAT5/CAT6

Dimension 190 (H)×85(W)×48(L)mm 482 (H)×86(W)×44(L)mm 83 (H)×25(W)×25(L)mm

85(H)×25(W)×25(L)mm

Interface form RJ45

IP code(IEC EN 60529) IP20

Error rate ≤10-12

Material/color Aluminum/Blue

Insertion loss ≤.3.0dB

Working conditions Temperature: -40 to 85℃, Relative humidity: ≤95％
