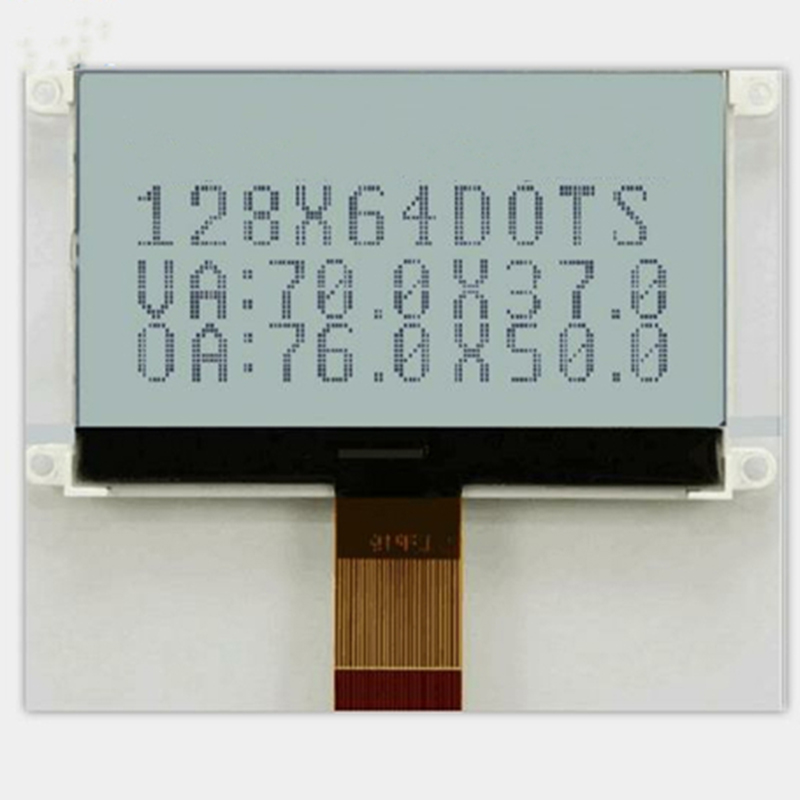

Graphic LCD module, 128*64 dots, White LED backlight, 8-bit parallel or SPI

DGM1286403-V1 is a mono 128x64 graphic LCD display. It supports 6800 8-bit parallel interface or SPI. This 12864 Graphic LCD module is available for without backlight or with LED backlight options. DGM1286403-V1 is available in various LCD panel colors including gray, yellow/green and blue LCD options. This model graphic LCD display can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.

It is designed for any embedded systems, industrial device, security, medical and hand-held equipment.

LCD Module Specifications:

Part No DGM1286403-V1

Module size (W*H*T) 87.0*50.0*8.0 mm

Viewing Area (W*H) 70.0*37.0 mm

Dot Pitch (W*H) 0.51*0.51 mm

Dot size (W*H) 0.495*0.495 mm

Interface 8-bit parallel or SPI

Supply voltage (Logic) -0.3 to 3.6V

Supply voltage (LCD) -0.3 to 14.5V

Operating temp -20℃ to 70 ℃

Storage temp -30℃ to 80℃
